The hardened steel with zinc-nickel plating makes our couplers resist rust, high pressures, and provide it with corrosion-resistance. The sleeve locking system makes them easy to connect. All these features make them a perfect tool for connecting hydraulic lines. Stay connected with our high quality couplers.
Advanced Design
Quick Connecting
Hardened Steel Construction
Dust Covers Included
High Compatibility
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

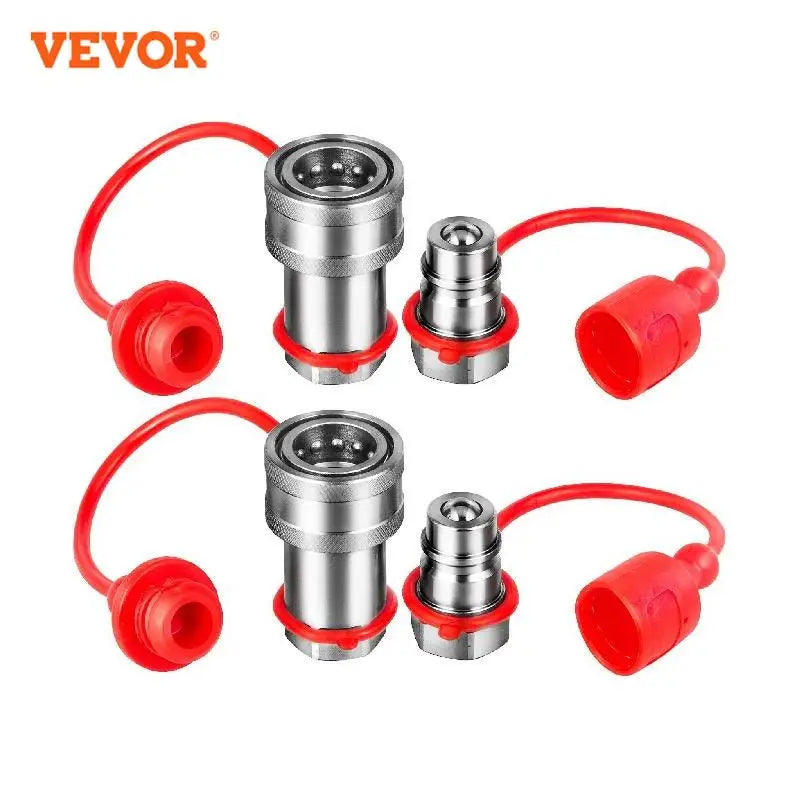

Product Type: Hydraulic Quick Connect Coupler Set
Material Type: Steel & PVC
Valve Type: Pioneer Ball Style
Plating Type: Corrosion-resistant Trivalent Zinc
Working Temper: NBR -20℃ ~ +100℃ (FKM -20℃ ~ +180℃)
Body Size: 1/4" (6.35 mm)
Thread Size: 1/4" NPT
Max. Pressure: 5076 PSI (350 Bar)
ISO Standards: ISO 5675
Gross Weight: 3 lbs (1.36 kg)
2 x Set of Hydraulic Couplers (Male & Female)
2 x Set of PVC Protective Dust Caps
Advanced Design: This spherical face hydraulic connect coupler set features an improved valve design, which allows for a rated pressure of 5076 PSI, zero fluid loss, and long service life. It meets the standards of ISO 5675, perfect for connecting your hydraulic lines.
Quick Connecting: The sleeve locking mechanism (with 1/4" NPT thread) makes the couplers easy to connect with a simple push. Rotate the collar to lock them tightly, preventing accidental disconnection. If you need to disconnect it, aim the point at the gap, then give a pull. Connection is simple, effortless, and requires minimal force.
Hardened Steel Construction: Our quick couplers are strongly built with hardened stainless steel to resist deformation and high temperatures. The zinc-nickel plating provides high resistance against rust and corrosion. They are built tough to last for years to come.
Dust Covers Included: Dust caps are included to prevent dirt from disrupting the connecting system, preventing the risk of malfunction. The retaining ring is covered by a sleeve. Additionally, a dust seal is placed within the spring area.

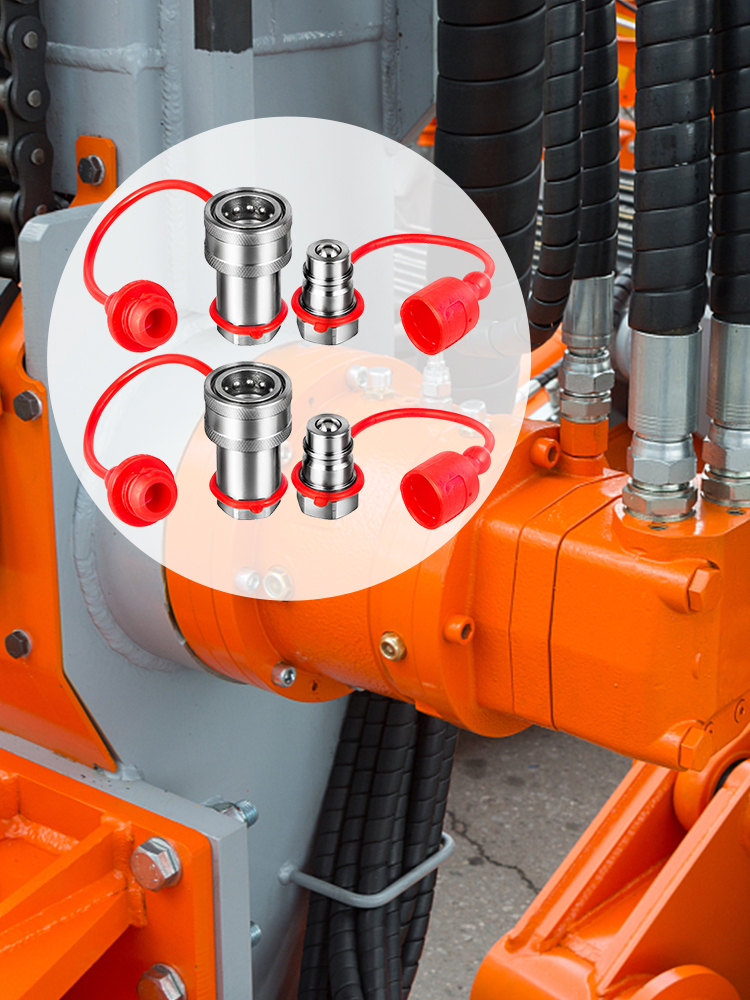

High Compatibility: The quick coupler set is designed for applications where hydraulic spillage is likely to occur. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.
Replace Part Number
Parker 4000 Series Male: 4010-2P Female: 4050-2P
Safeway S20 Series Male: S41-2P Female: S25A-2P
Faster NV/NS Series Male: NV 14 NPT M Female: NV 14 NPT F
Snap-Tite 60/ 21 Male: 60C4-4M Female: 60C4-4F
Stucchi IRV Series Male: 800101001 / M IR14V NPT Female: 800101000 / F IR14V NPT
Dixon AG Series Male: AG2F2-PV Female: 2AGF2-PV
Eaton/Aeroquip FD42 Male: FD42–1002–04–04 Female: FD42–1001–04–04
