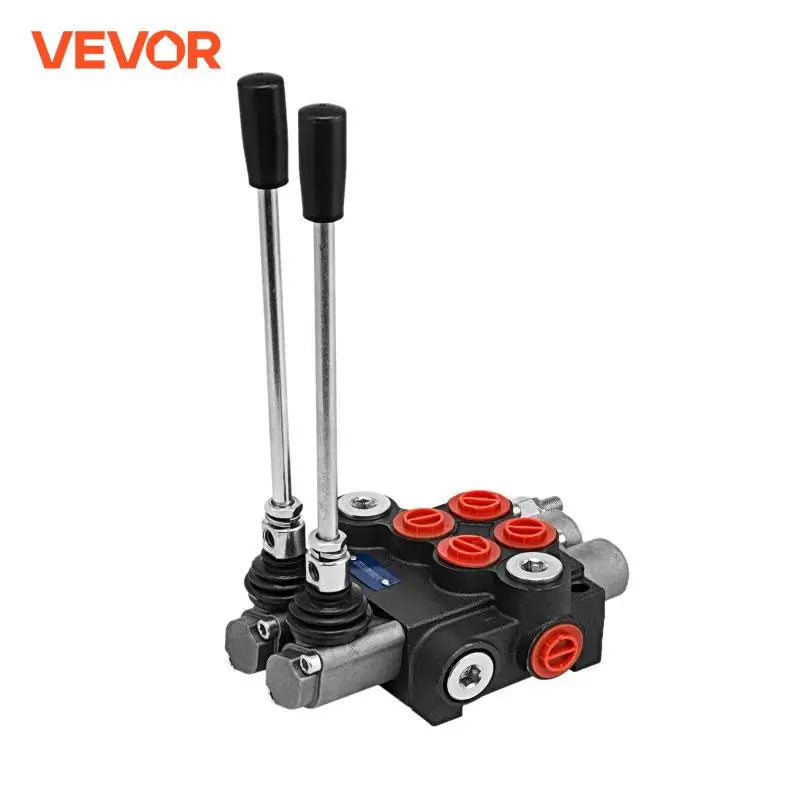

The compact design of the 2-spool valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.
Solid Construction
Excellent Performance
Spring Return
Inner Check/Relief Valve
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
Solid Construction
Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.
High Performance
The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
Spring Return
All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
Inner Check/Relief Valve
The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.
Multiple Control Ways
We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.
Wide Application
The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
Specifications
Max operating pressure: 3600psi
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 3/8" BSPP
P, T, N port: 1/2" BSPP
Weight: 14lb (6.3 kg)
Dimensions: 12.2''x8x5.1'' / 31x20.3x12.95 cm
Package Content
1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool
Specifications
Max operating pressure: 3600psi
Nominal flow: 11gpm (40l/min)
Relief valve: Adjustable
Center system: Open
P, T, N port: 1/2" BSPP
Dimension: 16.1''x5.1''x2.6'' (41x13x6.5 cm)
Package Content
1 x 2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder Spool
1 x 3 Spool Hydraulic Directional Control Valve Double Acting 11 GPM
Features & Details
【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.
【DURABLE QUALITY】- This hydraulic directional control valve comes with 2 spools and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.
【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.
【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.
