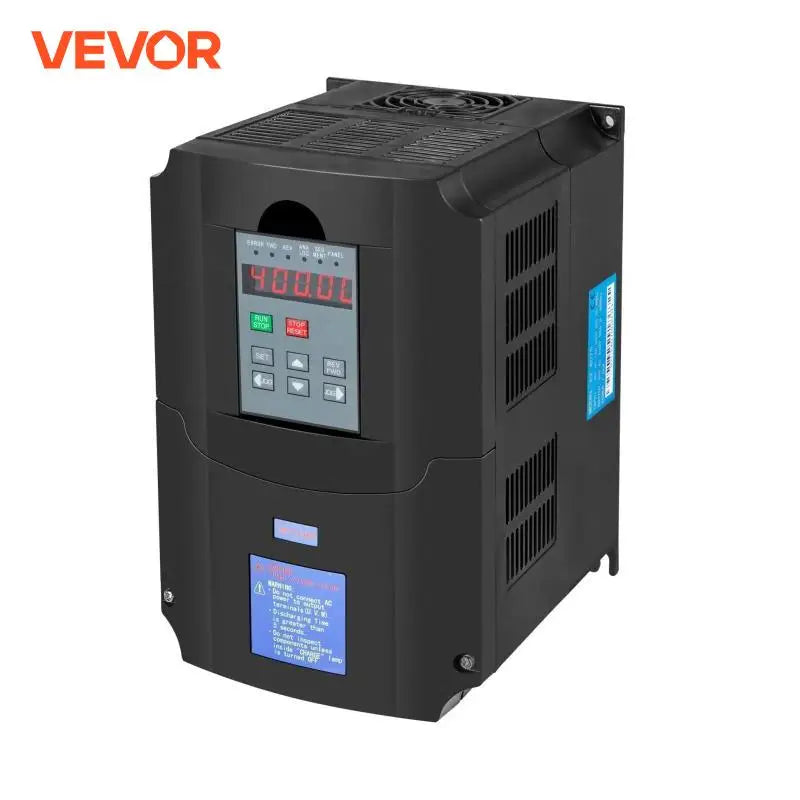

2.2KW 4KW Variable Frequency Drive Inverter 380V Output Frequency Converter 3P Economic VFD Spindle Motor Speed Controller

Sold Out

2.2KW 4KW Variable Frequency Drive Inverter 380V Output Frequency Converter 3P Economic VFD Spindle Motor Speed Controller

$214.19

Ask about this product

DESCRIPTION

Product Description

2.2/4KW Variable Frequency Drive

This VFD can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter. The input for this VFD is three-phase, output is three-phase. You can control the different speed as you like when you use this VFD. This item use Sine wave PWN(SPWM ) for the control system and performance excellently.

Premium Quality
Flexible Control
Powerful Performance
Safety Protection

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Note: The motor and frequency converter can only be connected by wires, and no switch can be installed in the middle.

Key Features

Separate Control Panel

With full-featured clear buttons to achieve quick and easy operation. The panel is detachable for convenient remote control.

Single/Three Phase

This is three phase VFD with 3 phase 380V input and 3 phase 380V output, and with power of 4KW. For 2.2KW variable frequency drive, we provide both single phase 380V and three phase 380V input. When used for single phase, another phase can be used as a spare line.

Premium Driver Board

The driver board is cleaned and painted. Adopted with the US intel and SILICON LABS chip, with communication port.

Safety Protection

Adopts overload protection, fuse protection, over-voltage (DC voltage>800V) or under-voltage (DC voltage<400V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.

Effective Heat Dissipation

Adopts large area of cooling vents and a forced air-cooled fan, offering powerful cooling capacity.

Widely Used

Applied in machinery winding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator and other speed control machines.

4KW Variable Frequency Drive

Material: plastic
Power: 4 KW
Input Voltage: 380V ± 15%
Output Voltage: 380V ± 15% (analogous to input voltage)
Input Frequency: 48-63 HZ
Output Frequency: 0-400 HZ
Input phase: 3 phase
Output phase: 3 phase
Control Mode: SPWM
Working Temperature: -10~40 ℃
Humidity: 0-95% Relative Humidity (without dew)

Package Content

1 x 4KW Variable Frequency Drive Inverter
1 x English Manual

2.2KW Variable Frequency Drive

Input Voltage: 380V
Output Voltage: 380V
Input Frequency: 40-60 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 or 3 phase as you like
Output Phase: 3 phase
Control Mode:SPWM
Input Power: 380±15%
Input Current: 6 A
Output Current: 8.6 A
Working Temperature:-10~40℃
Humidity:0-95% Relative Humidity（without dew）
Vibration:Below 0.5G

NOTE
Only for light-load motors, can not be used for heavy-duty motors.

Package Content

1 x 2.2KW Variable Frequency Drive Inverter
1 x English Manual

Features & Details

【PREMIUM QUALITY】- This VFD adopts the US intel and SILICON LABS chip. With communication port, adopting standard international MODBUS main circuit control. The 2.2KW VFD input for this VFD is 1 or 3 phase.
【FLEXIBLE CONTROL】- Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on. Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes.
【POWERFUL PERFORMANCE】- With extremely strong anti-jamming capability; With low output ratting torque, low speed running ability; Internal simple PLC, 6 multifunction input terminals, to achieve operation, zero speed, calculator, external exception program instructions and alarm; Auto voltage regulation (AVR) technique, for ensuring the inverter load capability.
【SAFETY PROTECTION】- Adopts overload protection, fuse protection, over-voltage (DC voltage>400/800V) or under-voltage (DC voltage<200/400V) protection, restart protection, stall protection, short-circuit protection and over-heat protection.
【WIDE APPLICATION】- Used for constant torque loads (such as hard starting: Air compressor, HVAC units) and variable torque loads (such as pumps, fans, etc.).
