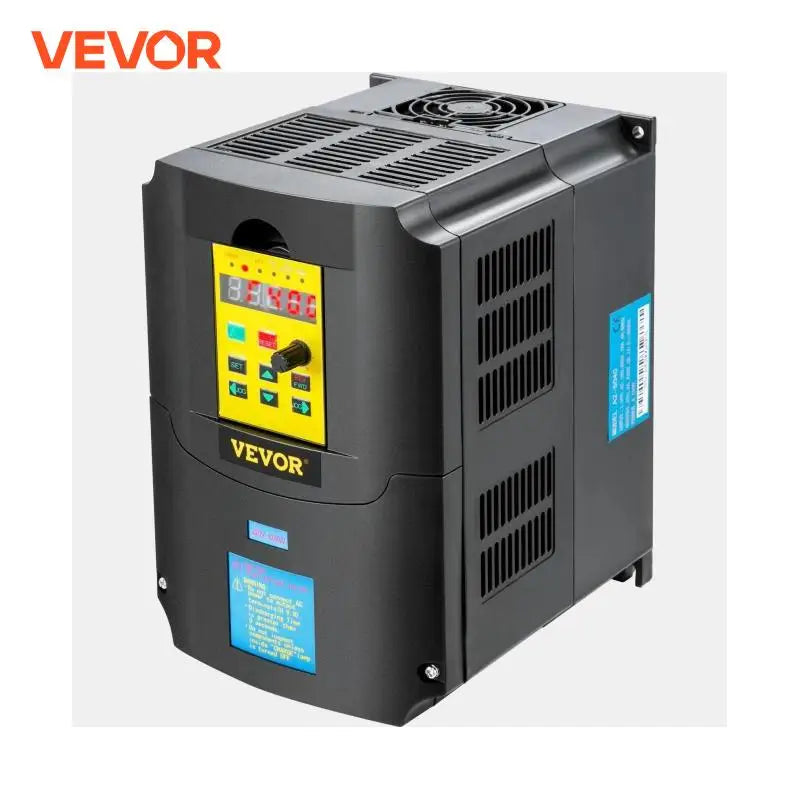

2.2/3/4/7.5KW VFD Frequency Inverter 110V/220V 1/3P Input 3P Output Variable Frequency Drive CNC Motor Inverter Converter

2.2/3/4/7.5KW VFD Frequency Inverter 110V/220V 1/3P Input 3P Output Variable Frequency Drive CNC Motor Inverter Converter

$125.99

Ask about this product

DESCRIPTION

Product Description

2.2/3/4/7.5 KW Variable Frequency Drive

Stable Performance & Digital Display & Mute Operation

This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.

Powerful Function
Low-Noise Operation
Smart Digital Display
Multiple Protection

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

Unique Control Method

This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.

High-Quality Material

The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).

High Air Volume

The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.

Smart Digital Display

After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.

Multiple Protection

Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.

Wide Application

The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.

3KW Variable Frequency Drive

Model: H100-3S2-1B
Power: 3 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-14A
Output Current: 0-14A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 4 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 2.43 lbs / 1.1 kg
Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

Package Content

1 x 3 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire

4KW Variable Frequency Drive

Model: H100-4S2-1B
Power: 4 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-17A
Output Current: 0-17A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 5.5 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 5.73 lbs / 2.6 kg
Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Package Content

1 x 4 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire

7.5KW Variable Frequency Drive

Model: H100-7.5S2-1B
Power: 7.5 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-33A
Output Current: 0-33A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 10 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 5.73 lbs / 2.6 kg
Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm

Package Content

1 x 7.5 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire

2.2KW Variable Frequency Drive

Model: H100-2.2C2-1B
Power: 2.2 kW
Input Voltage: 110V
Output Voltage: 0-110V
Input Current: 0-17.5A
Output Current: 0-17.5A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 3 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 2.43 lbs / 1.1 kg
Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm

Package Content

1 x 2.2 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire

Features & Details

Powerful Function: This variable frequency drive has a 1 or 3 phase input and 3 phase output. Control mode: V/F control and vector control. Frequency setting mode: digital setting, analog setting, serial communication setting (RS485 communication port, adopting standard international MODBUS main circuit control), PID setting (advanced calculus PID closed-loop arithmetic, quick responding speed, and high suitability), etc. Various control techniques by both synchronization and non-synchronization dynamically realize fast starting without changing brakes. Heavy load high torque, 1Hz up to full torque.
Low-Noise Operation: The phase converter features low noise and low electromagnetic interference through the optimization of PWM control technology and electromagnetic compatibility of the overall design. There is enough space for heat dissipation between electronic components, and the shell adopts porous heat dissipation, which has a longer service life.
Smart Digital Display: The VFD adopts a user-friendly keyboard design & reasonable layout, easy to operate; digital display, intuitive and clear. The detachable design is convenient for remote control.
Multiple Protection: We adopt various protection ways to ensure the stable and reliable operation of the CNC variable frequency drive inverter. Such as overload protection, fuse protection, over-voltage (DC voltage>400V), or under-voltage (DC voltage<200V) protection, restart protection, stall protection, short-circuit protection, and over-heat protection.
Versatile Use: The main application area involves a spindle motor, CNC engraving machine, CNC milling machine, CNC machine tool, milling machine, drilling machine, trimming machine, mixer, extruder, slitting machine, rewinder, compressor, ventilator, pump, grinder, conveyor. Speed regulators such as elevators (cannot be used for passenger elevators), centrifuges, etc.
