Solid Cast Iron Construction
Adjustable Dividing Head
High Precision Indexing Plate
Strong Workpiece Support
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Swing: 6-1/2" (16.5 cm)
Center Height: 3-15/16" (10 cm)
Headstock Taper: MT2
Net Weight: 50.7 lbs (23 kg)
Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

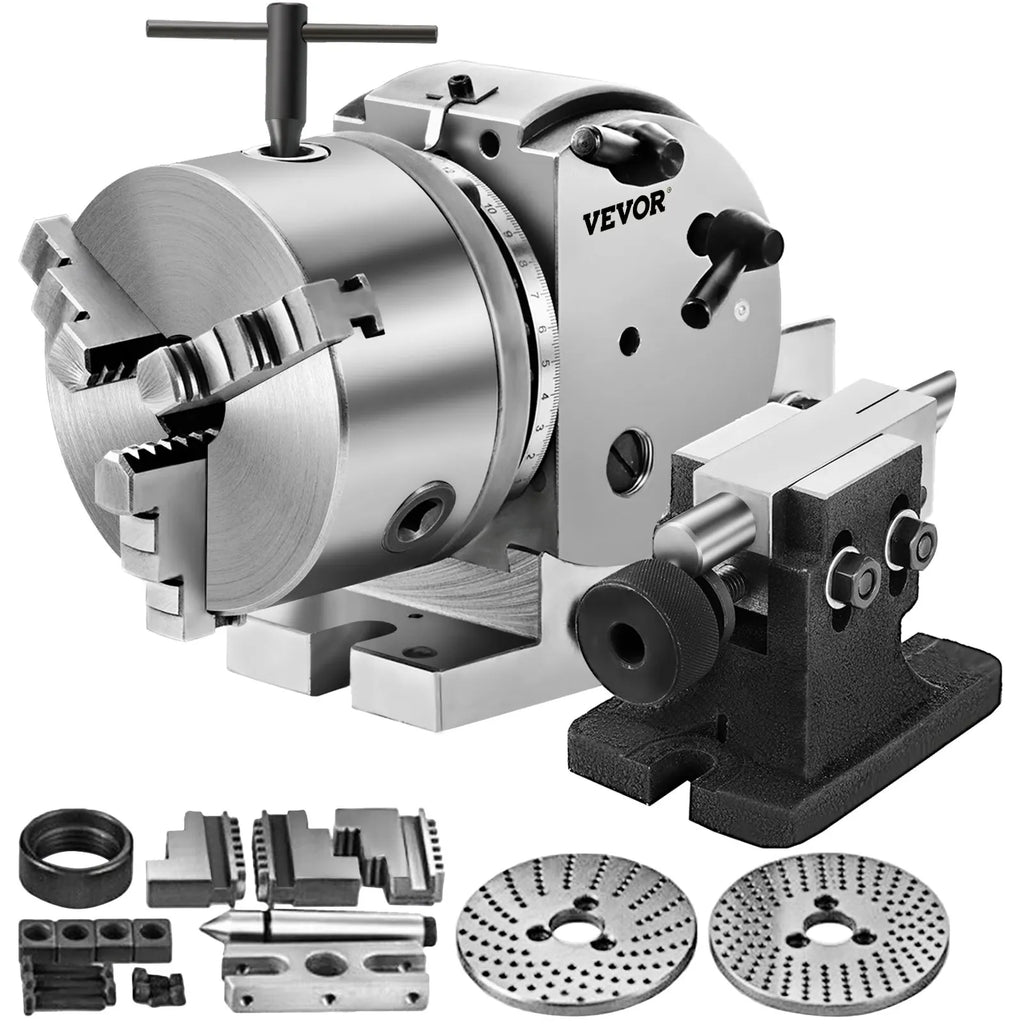

1 x Dividing Head
3 x Dividing Plates
1 x Tailstock
1 x 125 mm 3-Jaw Chuck
Solid Cast Iron Construction: Swing: 6-1/2"/168 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.
