Quality Material
High Precision
Double Jaw Chuck Jaws
Fast Clamping Speed
High Adaptability
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Material: Hardened Steel

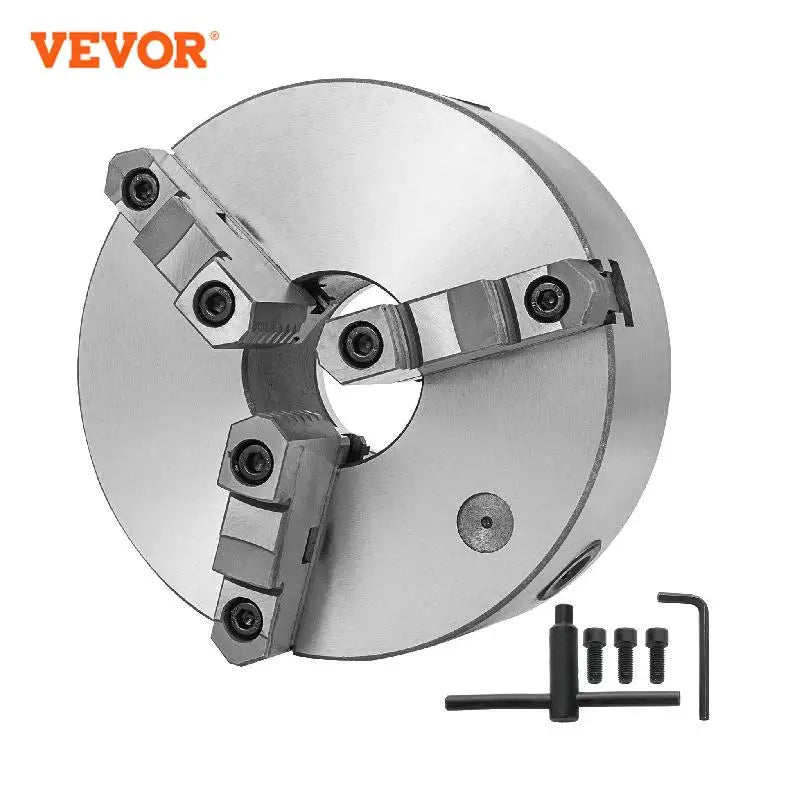

Model: K11-200A
Jaw: 3 Jaw
Application: for CNC Drilling Milling Machine
Color: Silver
Size: 8" / 200 mm
Outside Diameter: 8" / 200 mm
Bolt Circle Diameter: 7.08" / 180 mm
Center Thru Hole Diameter: 2.559" / 65 mm
Chuck Body Thickness: 2.95" / 75 mm
Internal Jaw Clamping Range (A-A1): 0.16" - 3.35" / 4 - 85 mm
Internal Jaw Jamming Range (B-B1): 2.56" - 7.87" / 65 - 200 mm
External Jaw Clamping Range (C-C1): 2.56" - 7.87" / 65 - 200 mm
Mounting Thread: 3-M10
Accuracy: 0.002" / 0.051 mm
Item Weight: 31.2 lbs / 14.14 kg
Package Dimensions (L x W x H): 10.6" x 10.6" x 7.9" / 27 x 27 x 20 cm
1 x 200 mm / 8 Inch Lathe Chuck
1 x Chuck Key
3 x Mounting Screws
1 x Hexagon Wrench
Material:Hardened Steel
Model: K11-250A
Jaw: 3 Jaw
Application: for CNC Drilling Milling Machine
Color: Silver
Size: 10" / 250 mm
Outside Diameter: 10" / 250 mm
Bolt Circle Diameter: 8.9" / 226 mm
Center Thru Hole Diameter: 3.15" / 80 mm
Chuck Body Thickness: 3.15" / 80 mm
Internal Jaw Clamping Range (A-A1): 0.24" - 4.33" / 6 - 110 mm
Internal Jaw Jamming Range (B-B1): 3.15" - 9.84" / 80 - 250 mm
External Jaw Clamping Range (C-C1): 3.54" - 9.84" / 90 - 250 mm
Mounting Thread: 3-M12
Accuracy: 0.002" / 0.051 mm
Item Weight: 50 lbs / 22.68 kg
Package Dimensions (L x W x H): 12.6" x 12.6" x 8.3" / 32 x 32 x 21 cm
1 x 10" / 250 mm Lathe Chuck
1 x Chuck Key
3 x Mounting Screws
1 x Hexagon Wrench
【Quality Material】: The lathe chuck body is made of high-quality hardened steel, and the hardness test of the jaws and guides is HRC58-62. It has high strength and toughness, compression resistance and durability, and long service life.
【High Precision】: The wood lathe chuck jaws and three jaws are self-centering, the alignment accuracy is less than or equal to 0.002" / 0.05 mm, and no adjustment is required after installation. The high precision design of the chuck bevel gear guarantees the accuracy of the chuck operation.
【Double Jaw Chuck Jaws】: Internal jaw is a positive L-shape, and external jaw is an inverted L-shape. K11-200A——The clamping range of this chuck is between 0.16" / 4 mm - 7.87" / 200 mm, K11-250A——The clamping range of this chuck is between 0.24" / 6 mm - 9.84" / 250 mm. Suitable for clamping a variety of industrial parts.
【Fast Clamping Speed】: The 3 jaw lathe chuck has an automatic centering function, so it does not need to be repeatedly calibrated during installation. It only needs to be installed in the correct order, which is simple, fast, and convenient.
【High Adaptability】: The accessory screws make the scroll chuck highly adaptable and can be used with the same series of jaws as the chuck. This power lathe chuck is suitable for clamping various parts such as hanging shafts, disks, equilateral triangles, etc.
