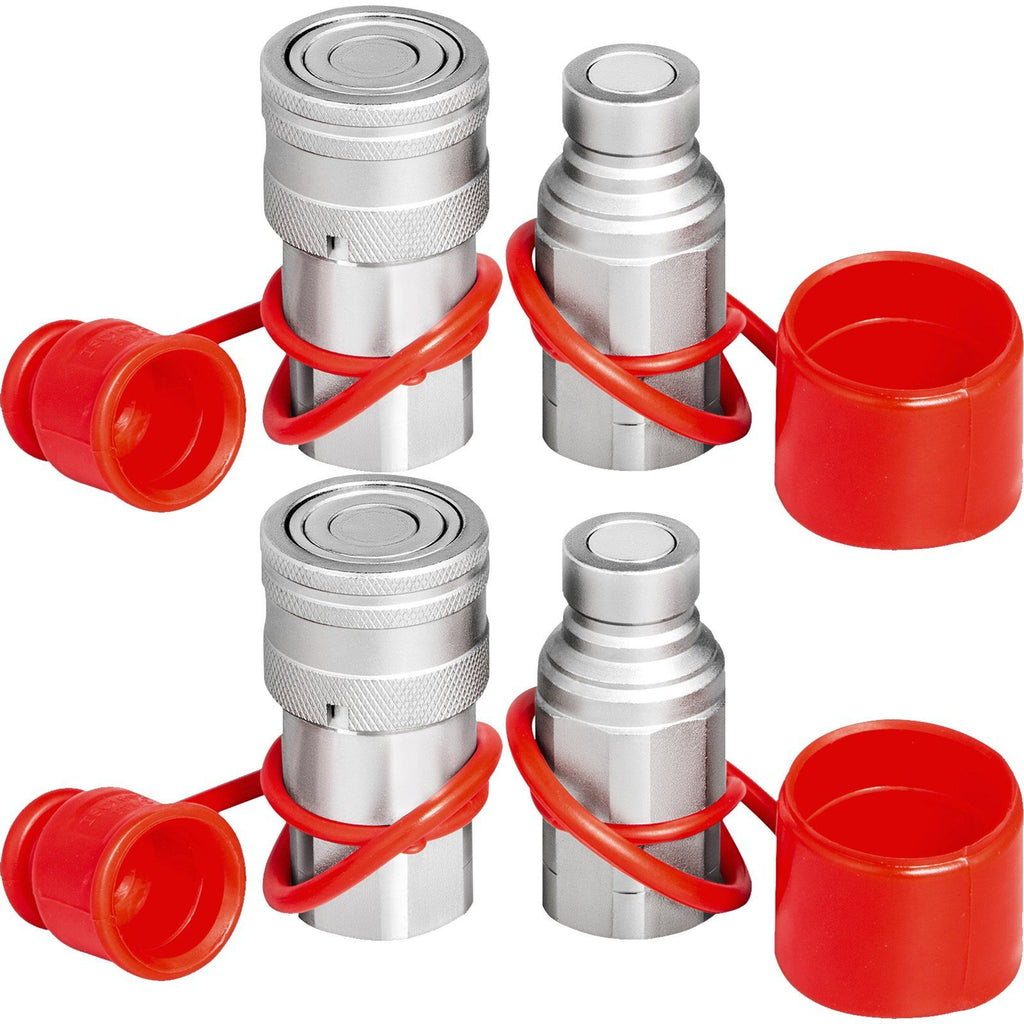

Skid Steer Hydraulic Quick Connect 1/2" Body Hydraulic Coupler 1/2" NPT Hydraulic Coupling Quick Connect 2 Pairs Hydraulic Quick Coupler 27.6 MPa (ISO 16028) (2 Pairs)

Features & Details

• [HIGH FLOW PERFORMANCE]- The pair of hydraulic fittings come with protective covers and adopted valve design with higher performance to bear the damage from the high-velocity flow and pulse pressure. With 4000 PSI Rating, Rated Flow: 45.5 L/Min, and meets ISO 16028 Standards.

• [1/2" BODY W/ 1/2" NPT THREAD]- Our flat face hydraulic quick coupling is constructed in precise dimensions, with a 1/2" Body and 1/2" NPT Thread. Coupled Length: 5.1". Both male and female coupler matches to each other tightly due to aligning metal swiveling action of ball-locking. Such an accurate size ensures the exact connect, effectively avoid the fluid losses of loosening connections.

• [HARDEN STEEL CONSTRUCTION]- The quick hydraulic couplers are made of high-strength harden steel with long service life. Their metal surface went through the zinc plating treatment to get superior resistances to high-temper, corrosion, and rust. Effectively minimize the damage caused by hydraulic and mechanical shock.

• [SLEEVE LOCKING DESIGN]- The pioneer hydraulic couplers built with an inside locking sleeve mechanism help tighten the couplers and dramatically prevent the accidental disconnects. The sleeve covers the retaining ring and incorporates a dust seal in the spring area, providing a safer and cleaner hydraulic fluid system.

• [WIDE RANGE APPLICATION]- The quick coupler comes in two pairs and is designed for applications where hydraulic spillage is a concern. It can be interchanged with most types of skid steers loaders, such as Bobcat, John Deere, CAT, Case / New Holland, Kubota, and many others.


• Replace Part Number:
  Parker FE Series Male: FEM-502-8FP Female: FEM-501-8FP
  Faster FFH Series Male: FFH08 12NPT M Female: FFH08 12NPT F
  Eaton Aeroquip FD89 Series Male: FD89-1002-08-08 Female: FD89-1001-08-08
  Safeway FFE49 Series Male: FFE491-4 Female: FFE495-4


Specifications

• Body Size: 1/2"
• Thread Size: 1/2" NPT
• Valve Type: Flat Face
• Material Type: Stainless Steel & PVC

• Rated Flow Rate: 45.5 L/Min

• Rated Pressure: 4000 PSI/ 27.6 MPa
• ISO Standards: ISO 16028

• Working Temper: NBR -20℃ ~ +100℃ (FKM -20℃ ~ +180℃)

• Plating Type: Corrosion-resistant Trivalent Zinc

Package Content

• 2 x Pair of Hydraulic Couplers
• 2 x Pair of Protective Covers
