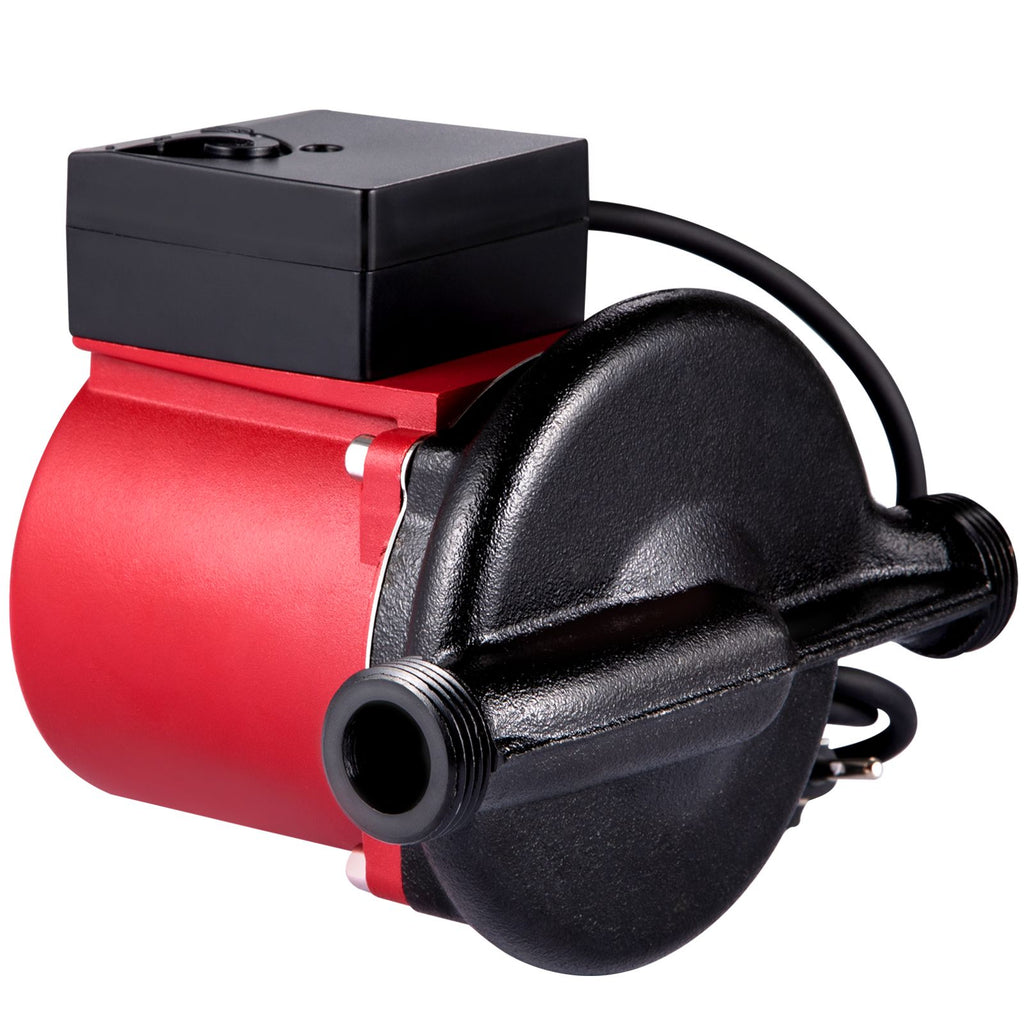

Hot Water Recirculating Pump, 245W 110V Water Circulator Pump, Automatic Start Circulating Pump NPT 3/4\" with Brass Fittings, Stainless Steel Head, 2 Speed Control for Electric Water Heater Sys
Sold Out
Hot Water Recirculating Pump, 245W 110V Water Circulator Pump, Automatic Start Circulating Pump NPT 3/4\" with Brass Fittings, Stainless Steel Head, 2 Speed Control for Electric Water Heater Sys
This water circulator pump is made of a premium stainless steel pump head and aluminum pump housing, features high power efficiency, low energy consumption, ample water flow, low noise running, and easy installation. Convenient for daily use, perfect for family water heating systems, such as remote villas, cabins, etc.
Note: Never let water outlet facing downward, or the valve will be plugged up.
Cast Iron Material
Manual/Auto Switch
Large Flow & Quiet Running
Easy Installation
is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Heavy-duty Material
Our recirculating pump comprises a heavy-duty iron head, aluminum housing, and PP impeller and is also equipped with brass fittings, flow gauge, and water-stop. As a result, rust-proof, waterproof, corrosion-proof, and leakages-proof can last for years.
Boost Water Flow
Powerful flow with 16 GPM and the highest head lift can reach 49.2 ft. The maximum pressure of this water circulator pump is 10 Bar(145Psi). High efficient and large flow but low energy consumption.
Dual Control Mode
The pump features a built-in high-sensitive electronic sensor, two control methods-manual start or automatic start. The pump will run continuously for manual mode, and the pump will run when the water flows when turned on automatic mode.
Quiet Operation
This circulating pump for hot water boasts a powerful motor for stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.
Effortless to Install
The recirculating hot water pump is easy to install on appliances and industrial electric or gas water equipment. However, you need to keep the pump shaft horizontally after installation.
Various Application
The recirculating pump for a water heater is a convenient water pressure boosting pump used in the water heating system, such as solar water heater, electric water heater, domestic water pipelines, etc.
Specifications
Model: VV-ZT-ZYB UPA120
Power: 245W
Voltage: 110V/60HZ
Body Color: Red/Black
Pump Head: Cast Iron
Pump Housing: Aluminum
Impeller Material: PP
Shaft Material: Ceramic
Bearing Material: Carbon
Noise Level: 25dB
Inlet/Outlet Dia.: NPT 1" /2.54 cm
Max. Flow Rate: 16 Gpm / 60 L/min
Max. Head Lift: 49.2 ft / 15 m
Rated Pressure: 1.28 Bar / 18.5 Psi
Max. Pressure: 10 Bar/ 145 Psi
Cable Length: 4 ft / 1.25 m
Liquid temperature:32~212℉/0~100℃
Ambient temperature: 32~104℉/0~40℃
Mounting Position: Shaft Horizontal
Protection Level: IP44
Insulation Class: F
Product Size: 7.1x5.7x5.9 in / 18x14.5x15 cm
Package Content
1 x Recirculating Pump
1 x Flow Gauge
2 x Brass Fittings
2 x Rubber Gaskets
1 x Water-stop(3.28ft)
1 x Instruction Manual
