Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment
Sold Out

    Electric Compressor Motor, 3/4 HP, Rated Speed 1725 RPM Single Phase Electric Motor, AC 115V 230V Air Compressor Motor, Suitable for Agricultural Machinery and General Equipment

    $201.65 $356.92
    Ask about this product

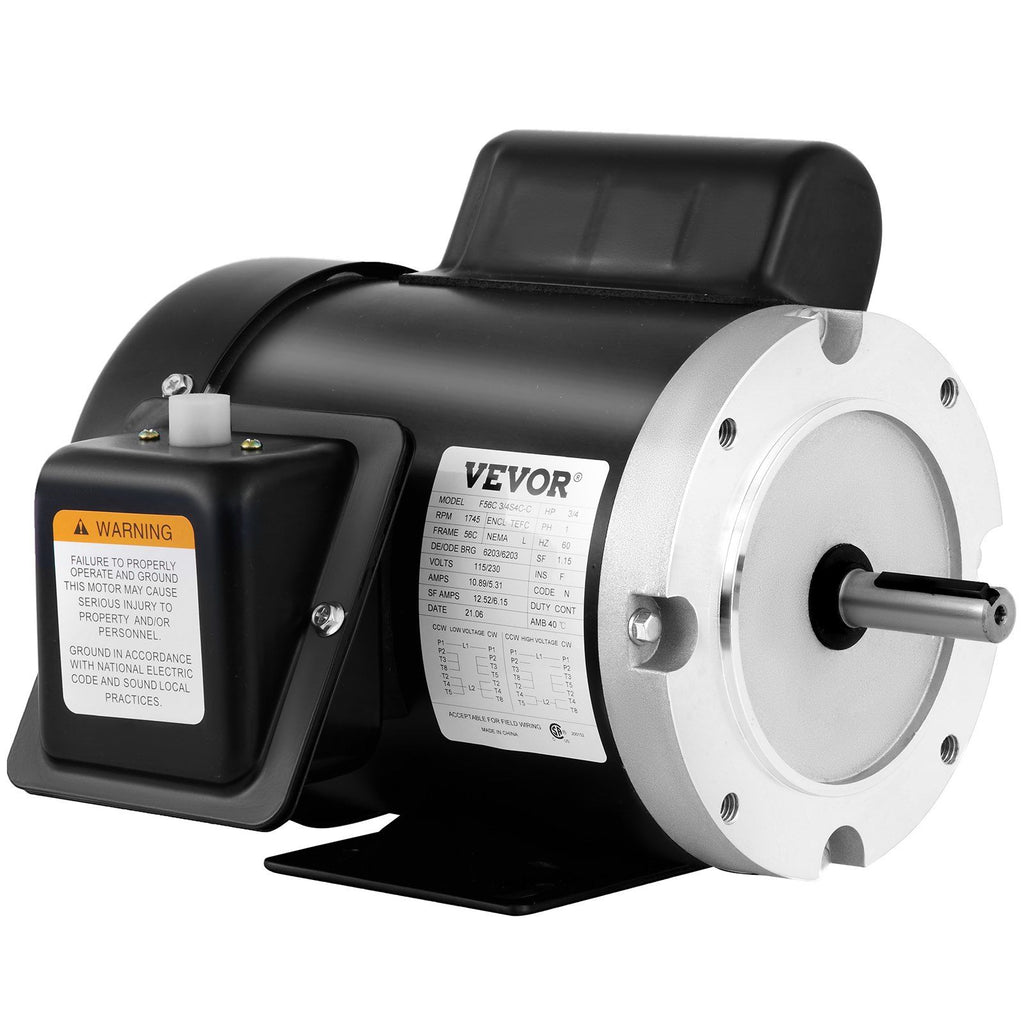

      3/4 HP Electric Motor 56C Frame Single Phase
      The listing is about electric motor F56C 3/4S4C-C, an electrical machine that converts electrical energy into mechanical energy. It is a 0.75 hp SHDC electric motor that is commonly used to match water pumps, agricultural machinery, and general equipment. A 115/230 volt electric motor that turns at 1745 RPM. A single-phase motor that has a rigid base and 5/8" keyed shaft.
      • 3/4 HP Electric Motor
      • High Working Efficiency
      • Sturdy Steel Housing
      • High-Speed Cooling Fan
      • Multiple Application
      VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
      Why Choose VEVOR?
      • Premium Tough Quality
      • Incredibly Low Prices
      • Fast & Secure Delivery
      • 30-Day Free Returns
      • 24/7 Attentive Service
      VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
      Why Choose VEVOR?
      • Premium Tough Quality
      • Incredibly Low Prices
      • Fast & Secure Delivery
      • 30-Day Free Returns
      • 24/7 Attentive Service
      Powerful Motor
      The high-power motor has a single-phase motor and 115/230V voltage, which can save energy in a long time, reduce energy costs or overhead. Move effortlessly.
      High Performance
      The electric motor 56C runs at 3/4 HP, and the maximum speed is 1745 RPM, Synchronous speed: 1800 RPM, high hardness shaft is more durable.
      Sturdy & Durable Construction
      The motor housing is made of durable metal material, robust and reliable, with strength and durability, corrosion resistance, and smooth surface provides comfortable use.
      Mounting Bracket Included
      A sturdy mounting bracket is included in the package to improve the motor's stability and reduce friction, ball-bearing systems are also suitable for many applications.
      Fully Enclosed Fan
      Even in dusty or damp environments, the big fan at one end cools the motor in hours' running to reduce the energy costs and the running temperature.
      Wide Application
      The electric motor is suitable for air compressors, medical equipment refiners, metal cutting machine tools, pumps, fans, transport machinery mixers, food machinery, etc.
      Specifications
      • Model: F56C 3/4S4C-C
      • Phase: Single Phase
      • Horsepower: 3/4 HP
      • Voltage: 115/230V
      • Amps: 10.89/5.31A
      • SF Amps: 12.52/6.15A
      • Frequency: 60 Hz
      • Rated Speed: 1745 RPM
      • Synchronous Speed: 1800 RPM
      • Frame: 56C Frame
      • Shaft Diameter: 5/8" / 1.6 cm Keyed Shaft
      • Shaft Length: 1.875"/4.8 cm
      • Rotation: CW-CCW
      • IP Rating: IP 55
      • Service Factor: 1.15
      • ENCL: TEFC
      • Insulation Class: F
      • Pole: 4
      • NEMA: L
      • AMB: 40 ℃ / 104 ℉
      • Mounting Type: Rigid/Flange installation
      • Reversible/Non-Reversible: Reversible
      • AC Motor Type: Induction Motor
      • Motor Size(L x W x H): 12 x 8 x 8''/30.48 x 20.32 x 20.32 cm
      Package Content
      • 1 x Electric Motor
