150HP Hydraulic Outboard Steering Kit Boat Marine System, Built-in Two-Way Lock Cylinder, 150HP Pump and High-Strength Nylon Hose for Single Station, Single-Engine use

150HP Hydraulic Outboard Steering System Kit

Our kit enables the installation of a hydraulic steering system on engines up to 150HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.

• Two-Way Locking Valve

• 2x20FT Hydraulic Hoses

• High-Performance Steering Cylinder

• Engineered for Versatility

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Easy Maintenance

Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.

Fixed-Length Hoses

Our hydraulic steering for boats comes with 20 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

Abundant Accessories

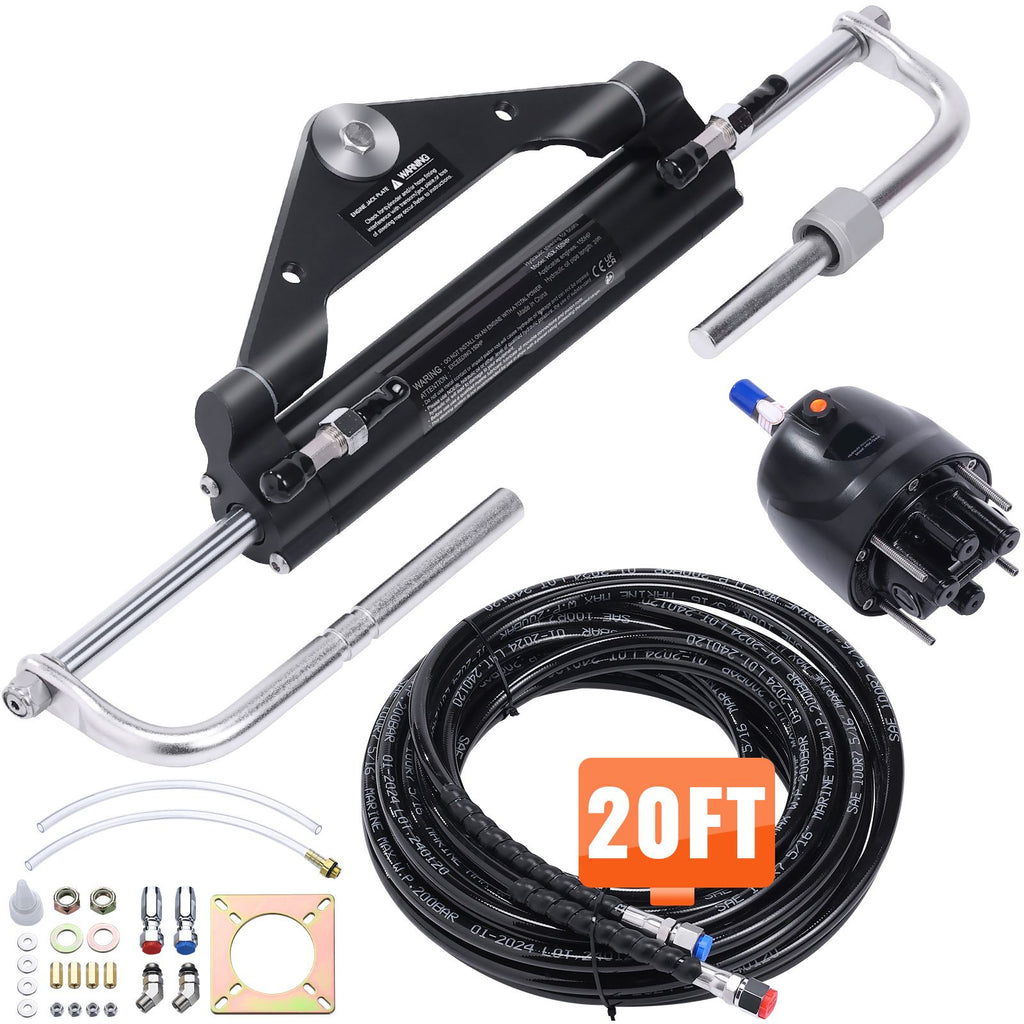

Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 20-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.

Friendly Reminder

Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.

Sturdy & Durable

Our hydraulic steering pump body is crafted from premium aluminum alloy to maintain steady performance regardless of damp, rainy, or dusty conditions. We significantly reduce damage caused by environmental factors, ensuring your system operates reliably under any circumstance.

Specifications

• Item Model Number: HSX-150HP

• Applicable Engine Horsepower: ≤150HP

• Maximum Pressure: 2.5Mpa/363psi

• Output Force: 400 KGF

• Capacity: 117 CC

• Tube I.D: Φ1.2 in/30 mm

• Rod I.D: Φ0.6 in/16 mm

• Stroke: 7.7 in/195 mm

Package Content

• 1 x Hydraulic Steering Pump

• 1 x Hydraulic Steering Cylinder

• 2 x High-Pressure Oil Hoses

• 1 x User Manual
