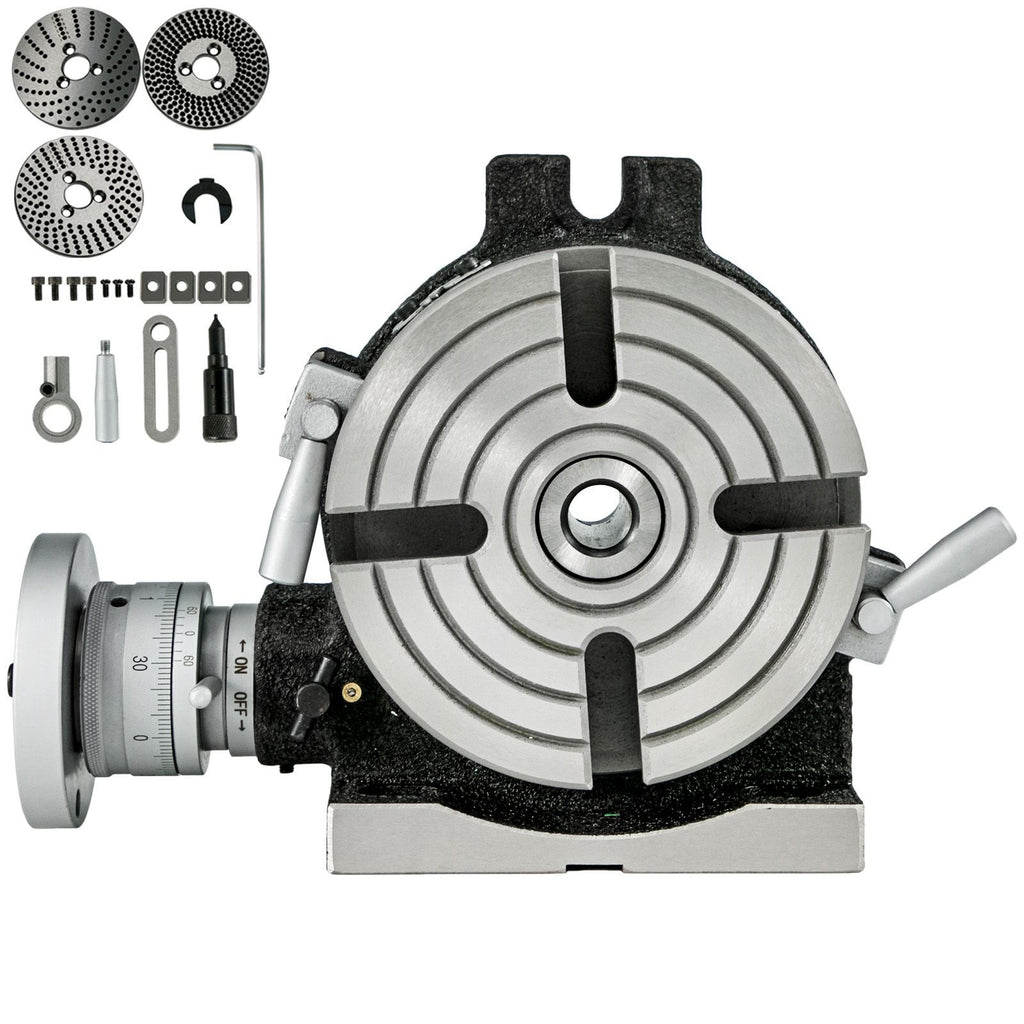

6"/150mm Rotary Table 4-Slot Rotary Table
The mill rotary table is one of the main accessories of milling machine. As a precision work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring, etc. The rotary turn table for milling machine is made from casting with high quality, can work with a set of dividing plate.
-
Verticle & Horizontal
-
Remarkable Quality
-
Excellent Precision
-
Convenient to Adjust
Vertical & Horizontal Design
Both vertical and horizontal with two functions. Circle cutting, indexing drilling, milling and more complicated work are possible when the vertical position of the table is used together with the tail part.
Durable Casting Material
Milling table is of good casting performance like mill vise, shock absorption performance as well as high strength heat resistance.
Highly Precision
The dial is divided into 360 degrees in total.Clear scale is more convenient for you to operate it.
Easy To Adjust
Just adjust the handle to the position where you want as the precise scale is marked on the dial.
Considerate Assembly Kits
Three dividing plate set(Plate 'A' - 15, 16, 17, 18, 19, 20 Plate 'B' - 21, 23, 27, 29, 31, 33 Plate 'C' - 37, 39, 41, 43, 47, 49). A set of wrench and screws are free for you with your installation.
Various Application
Rotary table milling machines are designed for milling, drilling, fixture boring and many common workshop applications.
Package Content
-
1 x Rotary Table
-
3 x Dividing Plates
-
1 x A Set of Accessories
Specifications
-
Model: 6 inch Rotary Table
-
Material: Cast Iron
-
Centre Bore: MT-2
-
T-slot Diameter: 1/2 inch / 14 mm
-
Table Dimension: 6 inch / 150 mm
-
Plate 'A' - 15, 16, 17, 18, 19, 20
-
Plate 'B' - 21, 23, 27, 29, 31, 33
-
Plate 'C' - 37, 39, 41, 43, 47, 49
-
Setting Position: Horizontal / Vertical
-
Item Weight: 40 lbs / 18.18 kg
-
Item Dimensions: 9.5 x 3.1 x 7.7 inch / 24.2 x 8.1 x 19.8 cm
