Milling Table 17.7×6.7In Compound Slide Milling Table Multifunction Worktable Cross Milling Machine Compound 2 Axis 4 Ways

$373.84

Ask about this product

DESCRIPTION

Product Description

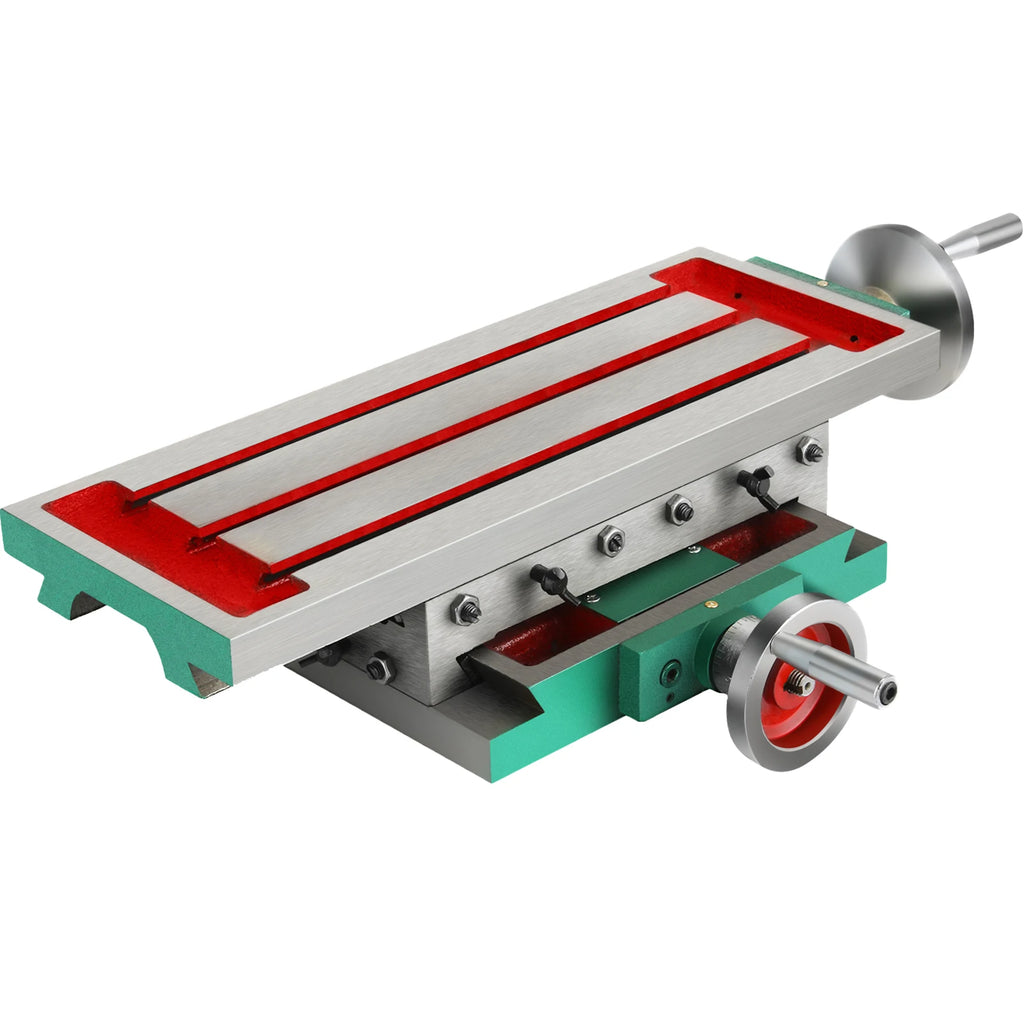

6.7 in / 170 mm Milling Machine Worktable

Large Worktable & Flexible Movement & High Precision

The two-axis workbench surface has three T-slots and provides dual-axis (lateral and cross) positioning via two handwheels for precise adjustments. Perfect for drilling grinding and milling operations.

Premium Quality Structure
Highly Polishing & Stiffness
Adjustment in X Y Direction
Tightness Adjustment

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

Heavy-duty Cast Iron

Made of quality cast iron, which is anti-corrosion and rust resistance, more durable and ensures long service time.

T Groove Fixing Design

The compound table, with great hardness and stiffness, is high ground and not easy deformation. Three T-slots design can meet different force requirements.

2 Axis Movement

X-axis travel: 210 mm, Y-axis travel: 110 mm. You can adjust the optimal working position as you need.

Adjustable Handle

A metal handle with good texture is easy to adjust the directions. With a clear scale on it, the milling machine will be more accurate when in use.

Quality Bolts & Nuts

The drill press table will be more convenient to adjust the tightness of the worktable with a number of bolts and nuts.

Extensive Application

This milling working table can be used for most types of milling, drilling, and staging, ideal for all drill stands, drilling, and milling machines.

Specifications

Worktable length: 17.7 in / 450 mm
Worktable width: 6.7 in / 170 mm
Transverse travel(X-Route): 8.3 in / 210 mm
Longitudinal travel(Y-Route): 4.3 in / 110 mm
Mounting Hole Size (Transverse): 6.2 in / 15.7 cm
Mounting Hole Size (Longitudinal): 5.3 in / 13.5 cm
Chassis Size: 10 x 9 in / 26 x 23 cm
Overall height: 3.9 in / 100 mm
Net Weight: 66 lbs / 30 kg
Item Dimensions(L x W x H) : 23 x 13 x 5 in / 58 x 33 x 12.7 cm

Package Content

1 x Milling Support Table Worktable

Features & Details

Multiple Application: This milling working cross table machine is great for mounting on drilling machines for precise positioning. It can be used for most types of milling and drilling, ideal for all drill stands, drilling, and milling machines. Table Size: 23 x 13 in / 58 x 33 cm
Premium Quality Structure: Built by heavy-duty cast iron material, which is anti-corrosion and rust resistance, angle milling table can withstand the tough environment and designed for long service time.
Highly Polishing & Stiffness: The compound slide table, with great hardness and stiffness, is high ground and not easy deformation. Three precise T-slots can meet different force requirements.
2 Axis 4 Ways Move: Handles with trapezoidal thread spindles is easy to adjust the directions. X-axis travel: 8.3 in / 210 mm, Y-axis travel: 4.3 in / 110 mm. With a precise scale on it, you can adjust the optimal working position as you need.
Tightness Adjustment: Equipped with several quality bolts and nuts, you can easily adjust the tightness of this cross slide table. Convenient for your use.
