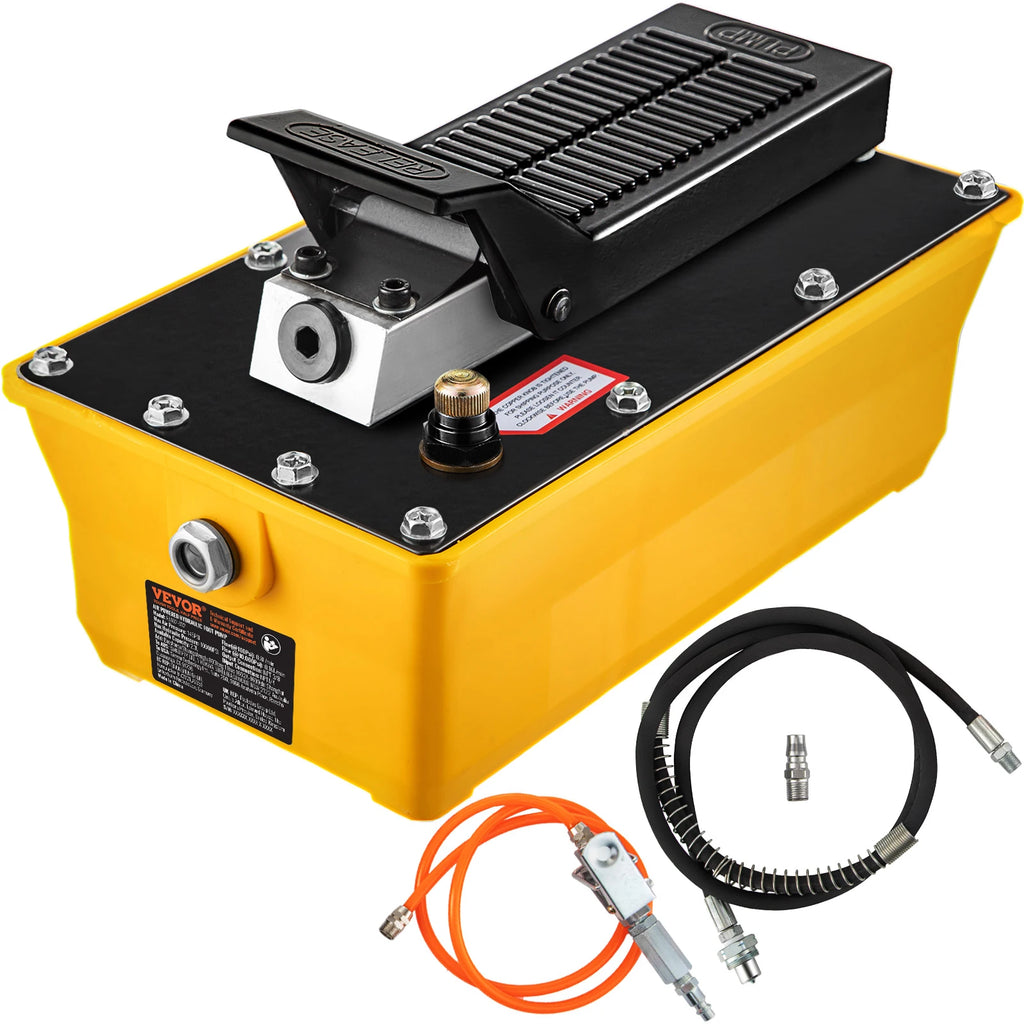

2.3L Fuel Tank 10000 PSI Air Hydraulic Foot Pump Single Acting with 200cm Oil Pipe & Spray Gun for Auto Repair Oil Rigging

Sold Out

2.3L Fuel Tank 10000 PSI Air Hydraulic Foot Pump Single Acting with 200cm Oil Pipe & Spray Gun for Auto Repair Oil Rigging

$328.02

Ask about this product

DESCRIPTION

Product Description

10,000 PSI Air Hydraulic Foot Pump

This air hydraulic foot pump adopts a user-friendly foot-actuated design for easy control and provides hands-free operation for pumping and releasing the load. Compact design for field use on construction sites and maintenance jobs. It is engineered to meet factory standards for performance and security, is the perfect pump for all your auto body shop hydraulic needs.

Fundamental Parameters
Foot-Actuated Design
Sturdy & Compact Construction
Oil Pipe & Spray Gun Included
10,000 PSI For Wide Application

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

Standard Air Inlet & Oil Outlet

The air hydraulic pump features a 1/4 NPT air inlet and a 3/8 NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port offers convenient hookups to a wide variety of hydraulic-powered equipment.

Simple Foot Pedal Control

The foot pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, a convenient foot pedal design allows fine control of the pump while keeping both hands free.

Premium Quality & Structure

The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable plastic shell is built to protect the internal structure better and is not easily deformed.

2.3L Large Oil Tank

The hydraulic air foot pump adopts a 2.3L aluminum alloy fuel tank with 2 liters maximum oil production for high performance. Moreover, it is able to ensure you have the supply needed to power a wide range of equipment.

Excellent Pipeline & Spray Gun

This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. The spray gun is also included to help users better use foot pumps to operate industrial and construction applications.

Multiple Application

This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It supplies the reliable power needed to operate your frame machine, frame straightening equipment, hydraulic presses, etc.

Specifications

Model: NAP001
Fuel Tank Capacity: 2.3L
Maximum Adjustable Pressure: 10000 psi, 700 kg/square cm
Maximum Output Oil: 2L
Output Oil Hole: 3/8'' NPTF Connection
Intake: 1/4'' NPT Connection
Oil Output Pressure: 70mpa
Flow: 0.75-0.95 liters per minute
Flow Rate: 49.5 cu. in. with no load, 7.6 cu. in. with load
Pressure Range: 0.7-1MPa
Action: Single Acting
Oil Pipe Length: 200 cm / 6.56 ft
Spray Gun Length: 100 cm / 3.28 ft
Item Dimensions(L x W x H): 32 x 18 x 18 cm / 12.6 x 7.1 x 7.1''
Net Weight: 10.1 kg / 22.27 lbs

Package Content

1 x Air Hydraulic Foot Pump
1 x Oil Pipe
1 x Spray Gun

Features & Details

Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI, which can be used for all 10-ton applications. Output oil hole: 3/8NPTF connection; Intake: 1/4NPT connection; Oil Output Pressure: 70mpa; Pressure Range: 0.7-1MPa.
Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, which is able to save the operator's time and effort with strong power and high output pressure.
Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality plastic shell to handle tough industrial applications. 2.3L oil tank has a larger capacity with 2 liters maximum oil output.
Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 6.56 ft/200 cm high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included.
10,000 PSI for Wide Application: This hydraulic pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. It is a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.
