Vertical & Horizontal Rotary Table 100MM 150MM 200MM HV4 HV6 HV8 Working Table Tilting 360° for Milling Drilling Machine

Sold Out

Vertical & Horizontal Rotary Table 100MM 150MM 200MM HV4 HV6 HV8 Working Table Tilting 360° for Milling Drilling Machine

$226.66

Ask about this product

DESCRIPTION

Product Description

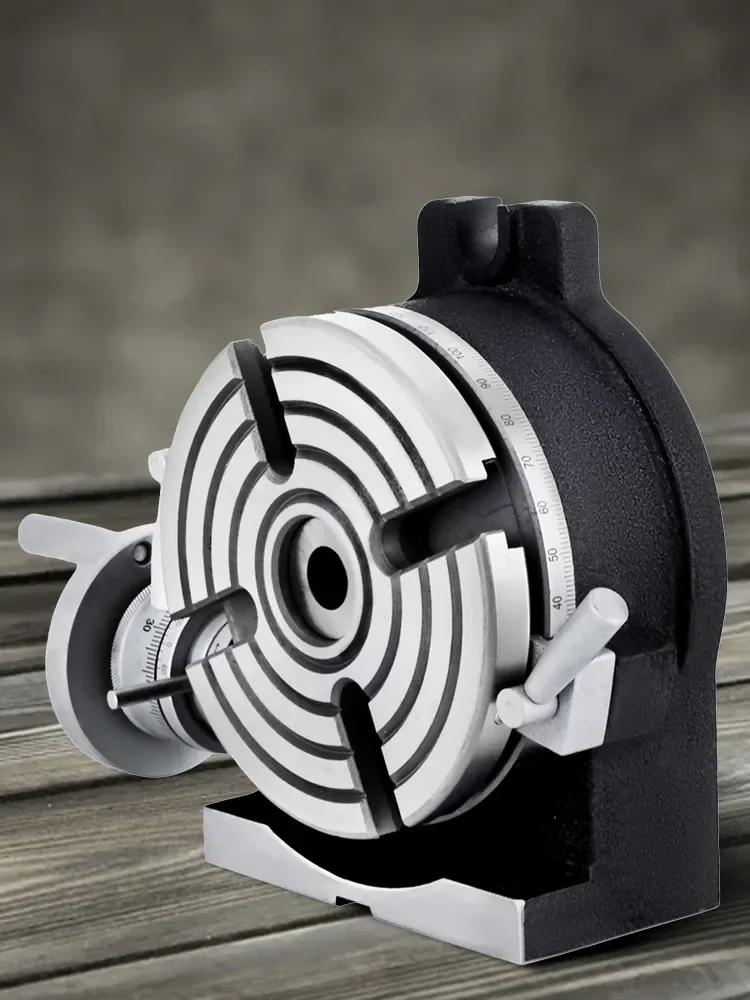

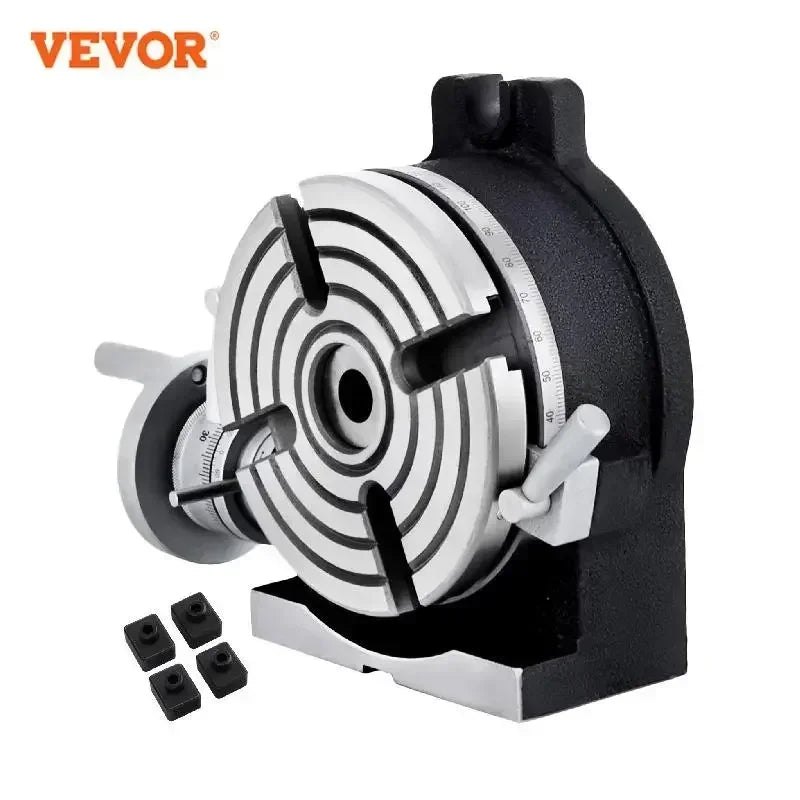

Vertical & Horizontal Rotary Table

The vertical & horizontal rotary table, one of the main accessories of the milling machine, is a precision work positioning device. This machine is widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis.

Vertical & Horizontal Position
Fantastic Material
Excellent Precision
Convenient to Adjust
Wide Application

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

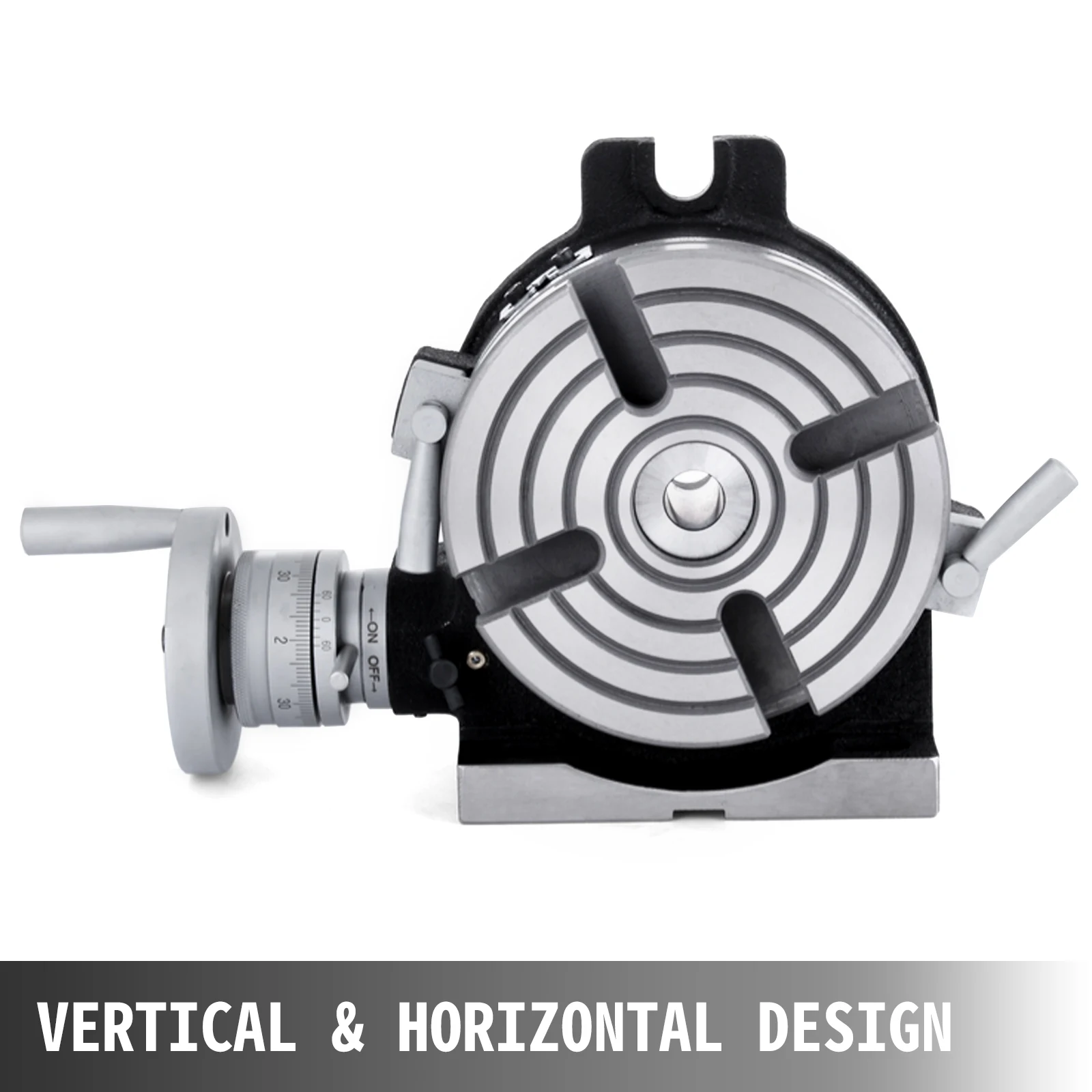

Vertical & Horizontal Design

It can be mounted "flat," with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. Or, mounted the rotary table on its end (or mount it "flat" on a 90° angle plate) so that it rotates about a horizontal axis. In this configuration, a tail stock can also be used, thus holding the workpiece "between centers."

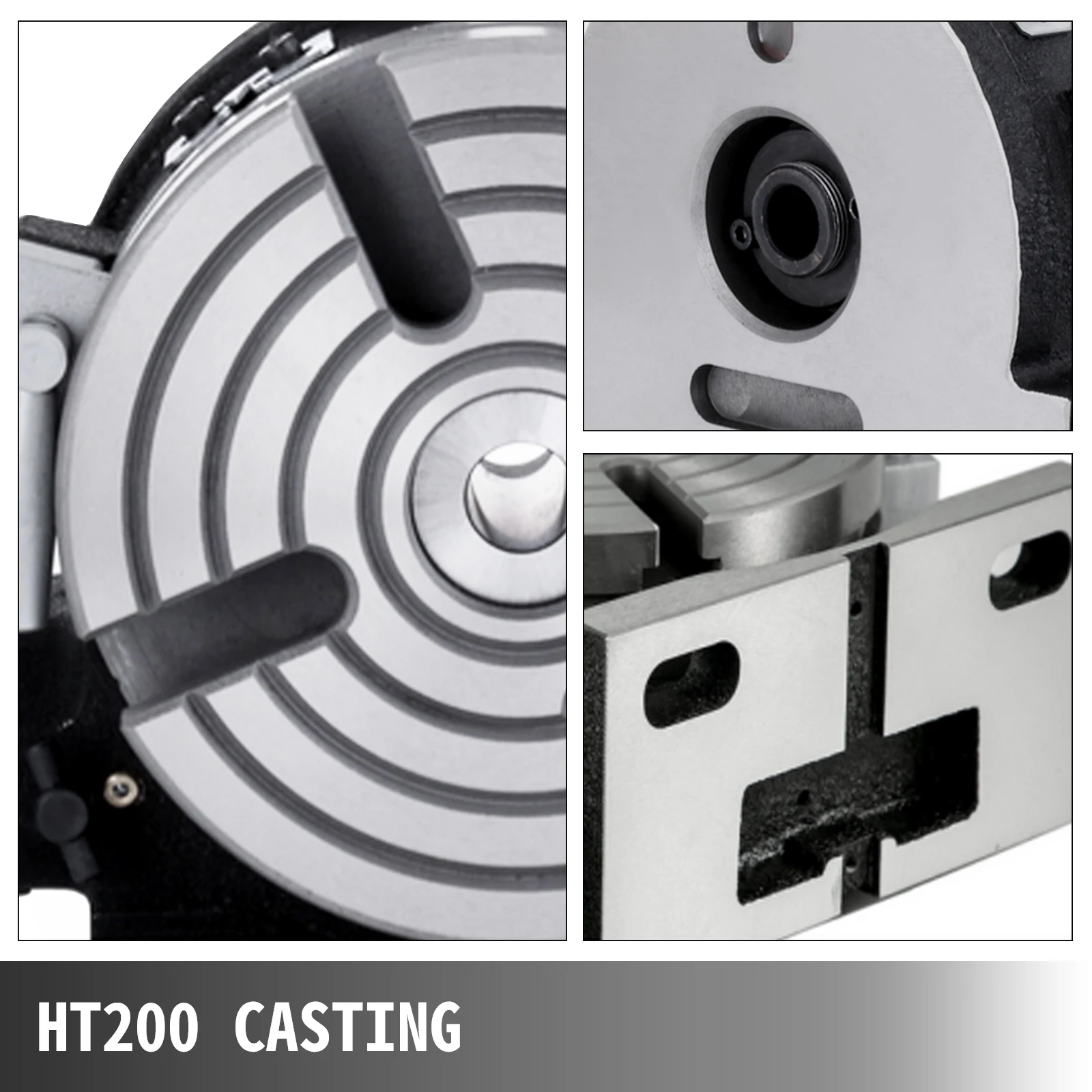

HT200 Casting

HT200 casting has excellent casting performance, shock absorption performance as well as high strength heat resistance. It ensures the superior performance of the machine and provides you a good sense of use.

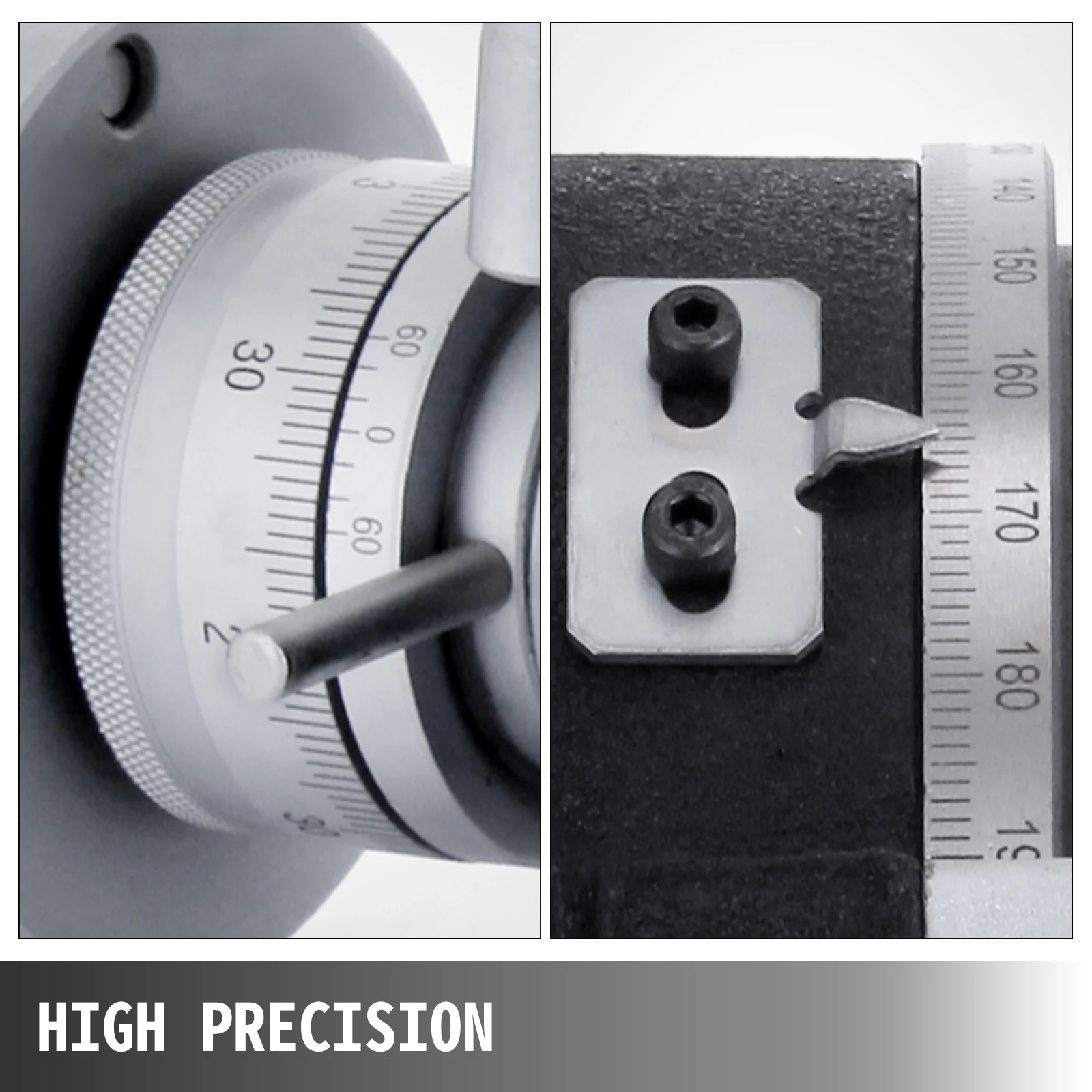

High Precision

The dial is divided into 360 degrees in total. The minimum scale can be accurate to seconds. All of these help you handle more complex and more precise tasks. Spindle end is applied accuracy bearing. Can be assured to keep very steady under load cutting.

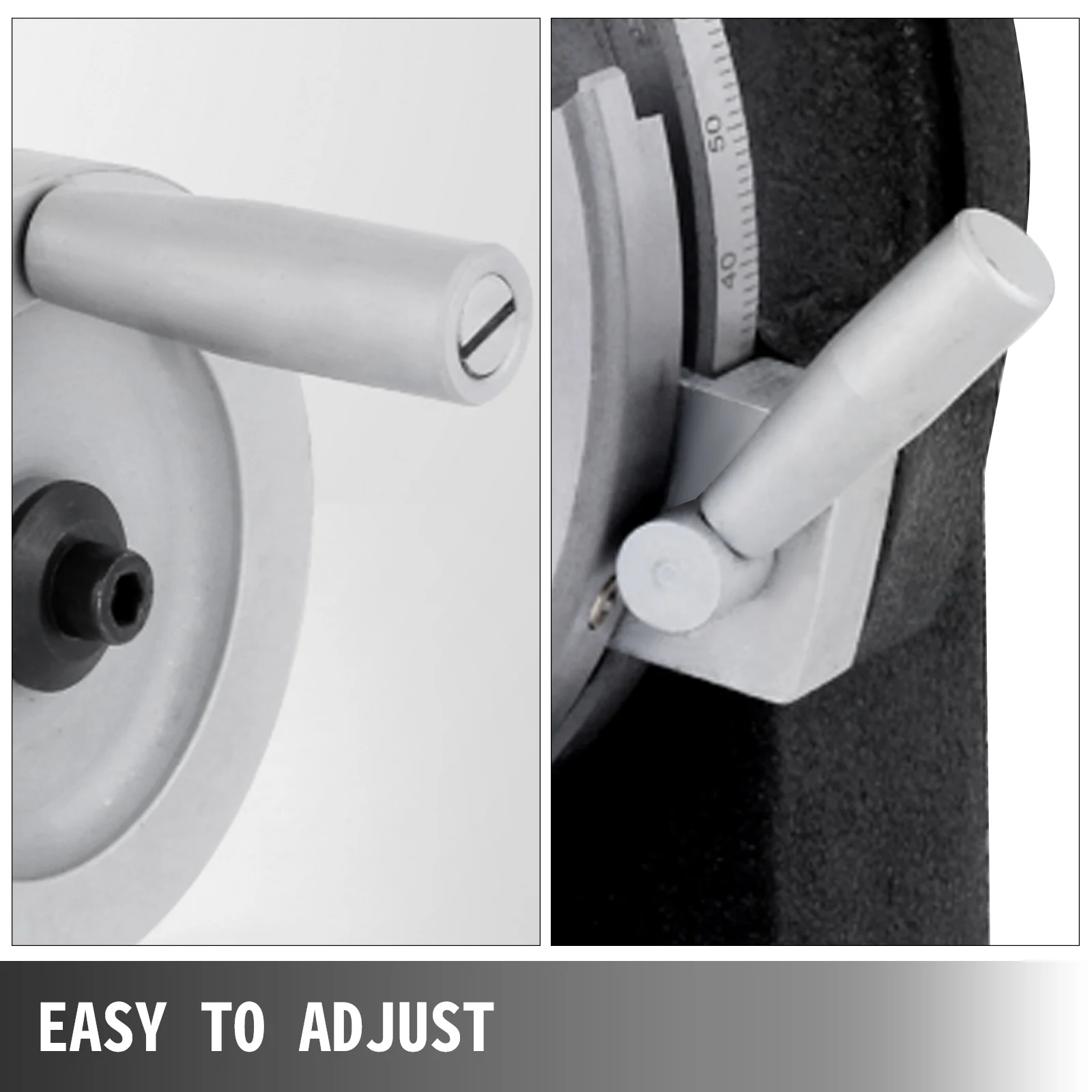

Easy to Adjust

It's not difficult for you to adjust the rotary table milling machine. What you should do is to adjust the handle to the position where you want because the precise scale is marked on the dial.

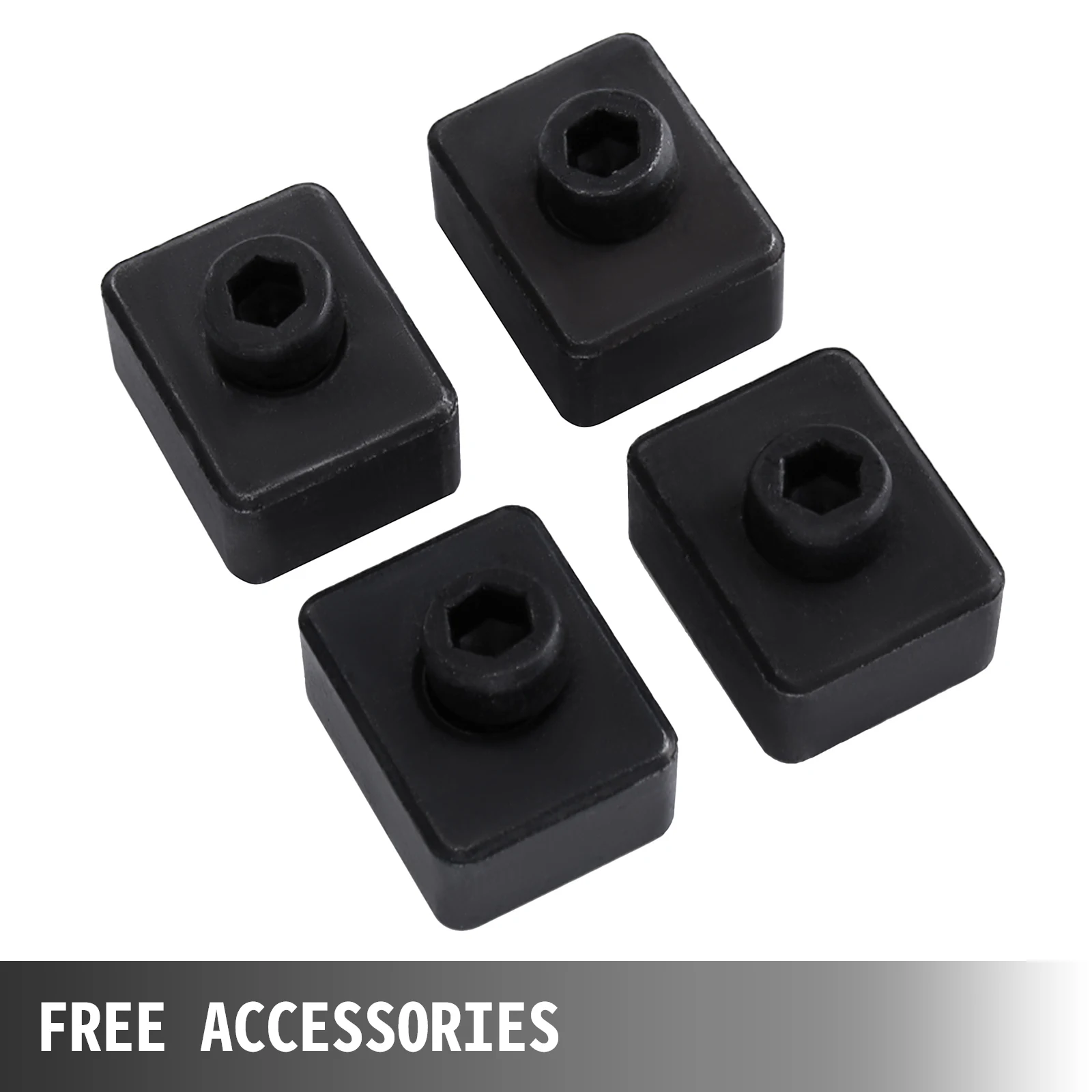

Free Accessories

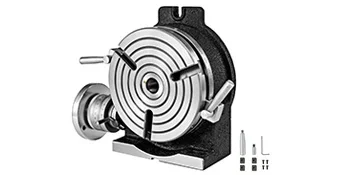

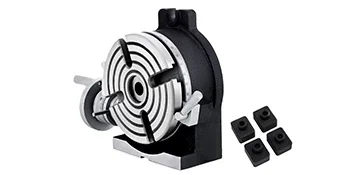

Except for the rotary machine table, we also offer you four locating blocks or wrench and screws. The center can be corrected quickly and accurately by the Key guide block.

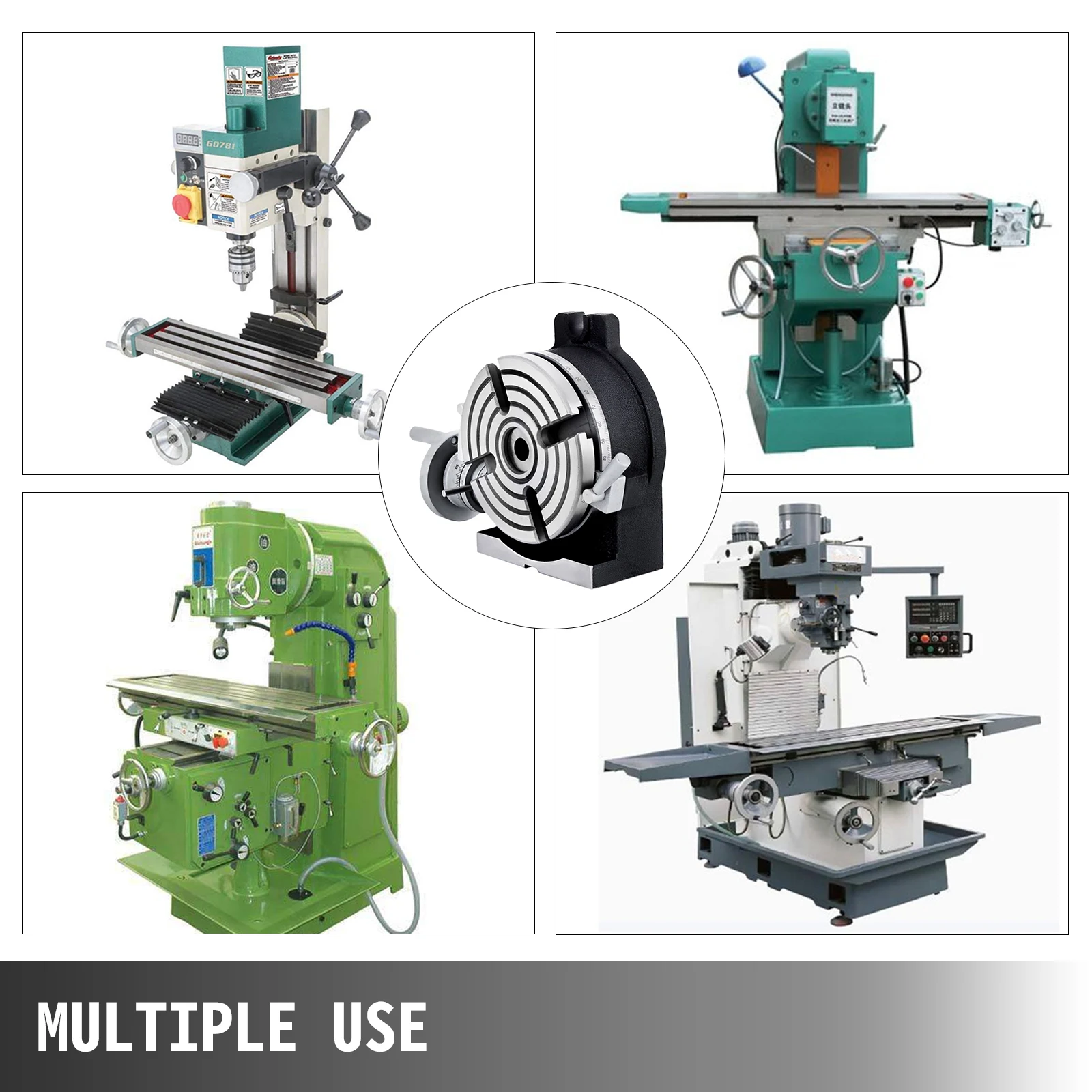

Multiple Use

Widely used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Great for circular cutting work, boring, spotfacing, and similar work.

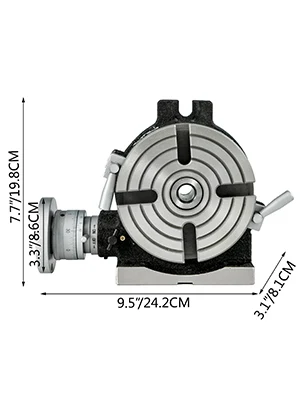

150MM / 6" Milling Rotary Table

Clamping table diameter: 150mm / 6"
Number of grooves: 4
Width of grooves: 11mm / 0.43"
Circular Accuracy: 0.04
The parallelism of the mounting surface: 0.04
Parts accuracy: 45"
Transmission of the worm gear: 90/1

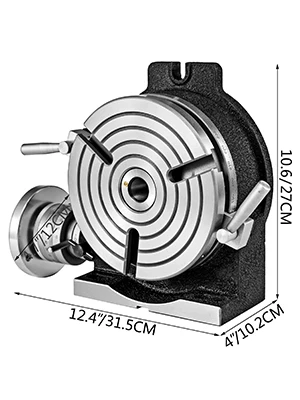

Basic dimension horizontal: 180 x 170mm / 7 x 6.7"
Basic dimension vertical: 205 x 80mm / 8 x 3.15"
Height: 80mm / 3.15"
Weight without packaging: 11.1kg / 24.47lb
Worktable with scale: 360 °
Load horiz.: 40kg / 88.18lb
Stress vertic.: 20kg / 44.09lb

Package Content

1 x Vertical and Horizontal Rotary Working Table

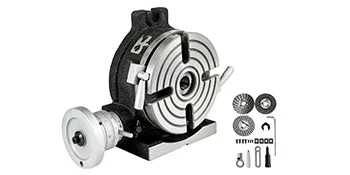

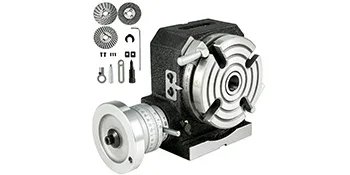

150MM / 6" Milling Rotary Table With Dividing Plates

Centre Bore: MT-2
T-slot Diameter: 1/2inch (14mm)
Table Dimension: 6inch (150mm)
Plate 'A' - 15, 16, 17, 18, 19, 20
Plate 'B' - 21, 23, 27, 29, 31, 33
Plate 'C' - 37, 39, 41, 43, 47, 49

Package Content

1 x Rotary Table
3 x Dividing Plates
1 x A Set of Accessory

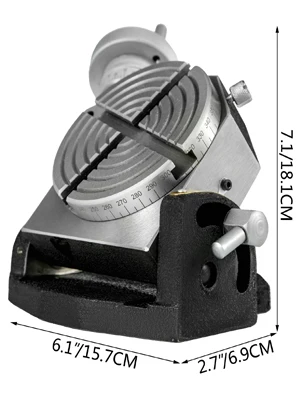

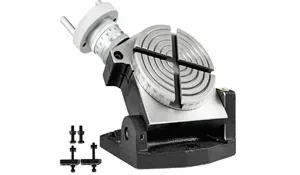

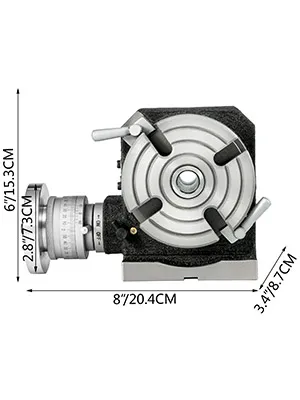

100MM / 4" Milling Rotary Table

Table Diameter: 4"/100mm
Material: HT200 Casting
Accuracy:0.01
Reduction Ratio: 1:36
Horizontal Height : 2.76"/70mm
Net Weight: 33.07"/15kg

Package Content

1 x Vertical and Horizontal Rotary Working Table
1 x Wrench
1 x Screw Set

100MM / 4" Milling Rotary Table With Dividing Plates

Centre Bore: MT-2
T-slot Diameter: 1/2inch (12mm)
Table Dimension: 4x3inch (100x80mm)
Plate 'A' - 15, 16, 17, 18, 19, 20
Plate 'B' - 21, 23, 27, 29, 31, 33
Plate 'C' - 37, 39, 41, 43, 47, 49

Package Content

1 x Rotary Table
3 x Dividing Plates
1 x A Set of Accessory

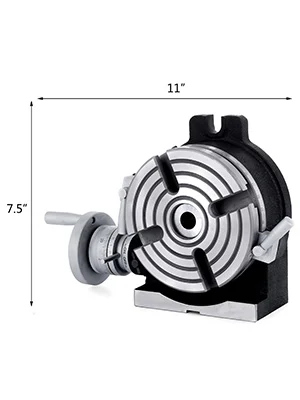

200MM / 8" Milling Rotary Table 3-Slot

Material: HT200 Casting
Table Diameter: 8"/200mm
Center Bore: MT-3
Reduction ratio: 1:90
Horizontal Height : 4.13"/105mm
Vertical Height : 1.57"/40mm

Package Content

1 x Vertical and Horizontal Rotary Working Table
1 x Wrench
1 x Screw Set

200MM / 8" Milling Rotary Table 4-Slot

Material: HT200 Casting
Table Diameter: 8"
Center Bore: MT-3
Reduction ratio: 1:90
Horizontal Height : 105 mm/4.13 inch
Vertical Height : 40 mm/1.57 inch

Package Content

1 x Vertical and Horizontal Rotary Working Table
1 x Wrench
2 x Positioning Keys
2 x Mounting Screws

Features & Details

【VERTICAL & HORIZONTAL POSITION】- Our rotary table with four slots is 4'' / 6'' / 8'' (100mm / 150mm / 200mm) in diameter, it can be used in horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience.
【FANTASTIC MATERIAL】- HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment. Adopted it as the material, our rotary milling table is durable, shock-absorbing, and heat-resistant.
【EXCELLENT PRECISION】- The rotary table for milling machine can be graduated 360 Degrees. Resetting dial and handwheel can be graduated in seconds. The enclosed design prevents the penetration of dirt and chips.
【CONVENIENT TO ADJUST】- The dial of the rotary table for mill is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently.
【WIDE APPLICATION】- This mill rotary table is popular for its excellent performance, practical design, and high precision. They are widely used for circular cutting work, boring, spot facing, and similar work.
