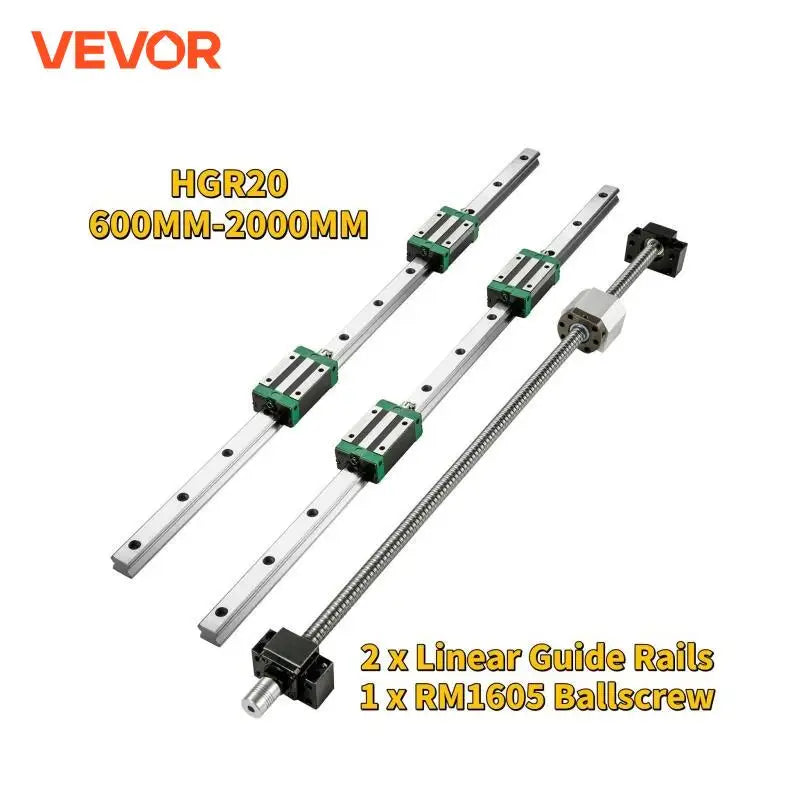

HGR20 2PCS Linear Guide Rails 600-2000MM 4PCS Slide Blocks RM1605 Ballscrew W/ Ball Nut BF12/BK12 Nut for CNC DIY Routers

Sold Out

HGR20 2PCS Linear Guide Rails 600-2000MM 4PCS Slide Blocks RM1605 Ballscrew W/ Ball Nut BF12/BK12 Nut for CNC DIY Routers

$180.77

Ask about this product

DESCRIPTION

Product Description

Linear Guide Rail

HGR20-700/1000/1500/1700/2000 mm

High Precision & Smooth Operation & Complete Set

This linear guideway rail is of 2 pieces of 700 mm / 27.5" or
1000 mm / 39.4" or
1500 mm / 59" or
1700 mm / 66.9" or
2000 mm / 78.7" long HGR20 rail shafts, 4 blocks, and a ballscrew kit. High-quality steel material extends the service life of the shaft, and the machine. Move smoothly without deflection, minimal wear, and low noise

700/1000/1500/1700/2000mm HGR20 Linear Guide Rail
High-quality Steel Material
Premier Linear Guiding System
Easy to Assemble

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Note: Please refer to the Specification at the bottom for details of the parameters of different models!

Key Features

HGR20-700 Linear Rail Kits

Linear slide kit includes 2 pieces of 700 mm / 27.5" long HGR20 rail shafts, 4 blocks, and a ballscrew kit.

High-quality Material

This bearing rail is constructed with carbon steel main axle, GCr15 bearing steel linear rail block and aluminum alloy casing. Corrosion-resistant, high strength, and wear resistance.

High Hardness & Rigidity

Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, with high accuracy and strong durability.

Complete Sliding Unit

Professional and technical rail and block, stabilizing the original rail. Move smoothly without deflection, minimal wear and low noise while using.

Easy to Assemble

Pre-drilled holes on the support rail mount for ease of mounting, saving time and effort.

Extensive Application

Linear motion rail is perfect for your DIY routers, mills, lathes, widely used in automation machinery, and also suitable for automatic equipment, precision measuring equipment.

HGR20-700mm Specifications

Type: HGR20 Slide Rail
Material: Gcr15 Steel
Rail Shaft Length: 27.5 in / 70 cm
Nuts: BF12 / BK12 Nuts
Fixing Screw Hole Size: M4 x 16 mm
Static Load Ratings: 25.31
Allowable Static Torque: 0.17 KN.m
Performance: Smooth Motion, Low Noise
Net Weight: 13 lbs / 6 kg
Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

2 x HGR20-700 mm Linear Guide Rails
4 x Slide Blocks
1 x RM1605-700 mm Ballscrew
1 x Ball Nut
1 x BF12 / BK12 Nut
1 x Plum Coupling

HGR20-1000mm Specifications

Type: HGR20 Slide Rail
Material: Gcr15 Steel
Rail Shaft Length: 39.3 in / 100 cm
Nuts: BF12 / BK12 Nuts
Fixing Screw Hole Size: M4 x 16 mm
Static Load Ratings: 25.31
Allowable Static Torque: 0.17 KN.m
Performance: Smooth Motion, Low Noise
Net Weight: 24 lbs / 11 kg
Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

2 x HGR20-1000 mm Linear Guide Rails
4 x Slide Blocks
1 x RM1605-1000 mm Ballscrew
1 x Ball Nut
1 x BF12 / BK12 Nut
1 x Plum Coupling

HGR20-1500mm Specifications

Type: HGR20 Slide Rail
Material: Gcr15 Steel
Rail Shaft Length: 59 in / 1500 mm
Nuts: BF12 / BK12 Nuts
Fixing Screw Hole Size: M4 x 16 mm
Static Load Ratings: 25.31
Allowable Static Torque: 0.17 KN.m
Performance: Smooth Motion, Low Noise
Net Weight: 18 lbs / 8 kg
Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

2 x HGR20-1500 mm Linear Guide Rails
4 x Slide Blocks
1 x RM1605-1500 mm Ballscrew
1 x Ball Nut
1 x BF12 / BK12 Nut
1 x Plum Coupling

HGR20-1700mm Specifications

Type: HGR20 Slide Rail
Material: Gcr15 Steel
Rail Shaft Length: 66.9 in / 170 cm
Nuts: BF12 / BK12 Nuts
Fixing Screw Hole Size: M4 x 16 mm
Static Load Ratings: 25.31
Allowable Static Torque: 0.17 KN.m
Performance: Smooth Motion, Low Noise
Net Weight: 27 lbs / 12 kg
Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

2 x HGR20-1700 mm Linear Guide Rails
4 x Slide Blocks
1 x RM1605-1700 mm Ballscrew
1 x RM1605 Ball Nut
1 x BF12 / BK12 Nut
1 x Plum Coupling

HGR20-2000mm Specifications

Type: HGR20 Slide Rail
Material: Gcr15 Steel
Rail Shaft Length: 78.7 in / 2000 mm
Nuts: BF12 / BK12 Nuts
Fixing Screw Hole Size: M4 x 16 mm
Static Load Ratings: 25.31
Allowable Static Torque: 0.17 KN.m
Performance: Smooth Motion, Low Noise
Net Weight: 24 lbs / 10 kg
Block Dimensions(L x W x H) : 2.8 x 1.6 x 1.3 in / 7.3 x 4.2 x 3.4 cm

Package Content

2 x HGR20-2000 mm Linear Guide Rails
4 x Slide Blocks
1 x RM1605-2000 mm Ballscrew
1 x Ball Nut
1 x BF12 / BK12 Nut
1 x Plum Coupling

Features & Details

700 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-700 mm linear guide rail, 4 blocks, 1pcs RM1605-700 mm ballscrew, 1pcs ball nut, 1pcs BF12/BK12 nut, and 1pcs plum coupling.
1000 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1000 mm linear guide rail, 4 blocks, 1pcs RM1605-1000 mm ball screw with end machined, 1pcs RM1605 ball nut, 1 set BF12/BK12 end support, and 1pcs plum coupling.
1500 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1500 mm linear guide rail, 4 blocks, 1pcs anti-reverse RM1605-1500 mm ballscrew, 1pcs ball nut, 1pcs BF12 / BK12 nut, and 1pcs 6.35 x10 mm plum coupling.
1700 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-1700mm linear guide rail, 4 blocks, 1pcs anti-reverse RM1605-1700mm ballscrew, 1pcs RM1605 ball nut, 1pcs BF12/BK12 nut, and 1pcs 8 x12mm plum coupling.
2000 mm HGR20 Linear Guide Rail: This linear guide rail set includes 2 pieces of HGR20-2000mm linear guide rail, 4 blocks, 1pcs RM1605-2000mm ballscrew, 1pcs ball nut, 1pcs BF12/BK12 nut, and 1pcs 8x12mm plum coupling.
High-Quality Steel Material: Linear guides are made of carbon steel, linear bearings are made of GCr15 bearing steel. Surface chrome plating treatment beautiful anti-rust, hardness can as high as HRC62, more durable.
Premier Linear Guiding System: Motor-driven guide rail achieves high precision linear motion. They are designed to achieve high precision linear motion and low friction coefficient.
Effortless to Install: Steel support rail with pre-drilled holes for ease of mounting. Stainless steel Linear optical axis guide bearings linear movement. Easy to install, no need for maintenance.
Versatile Application: The CNC linear rail is widely used in automatic equipment, precision measuring equipment, and many other machines that need precision linear movement.
