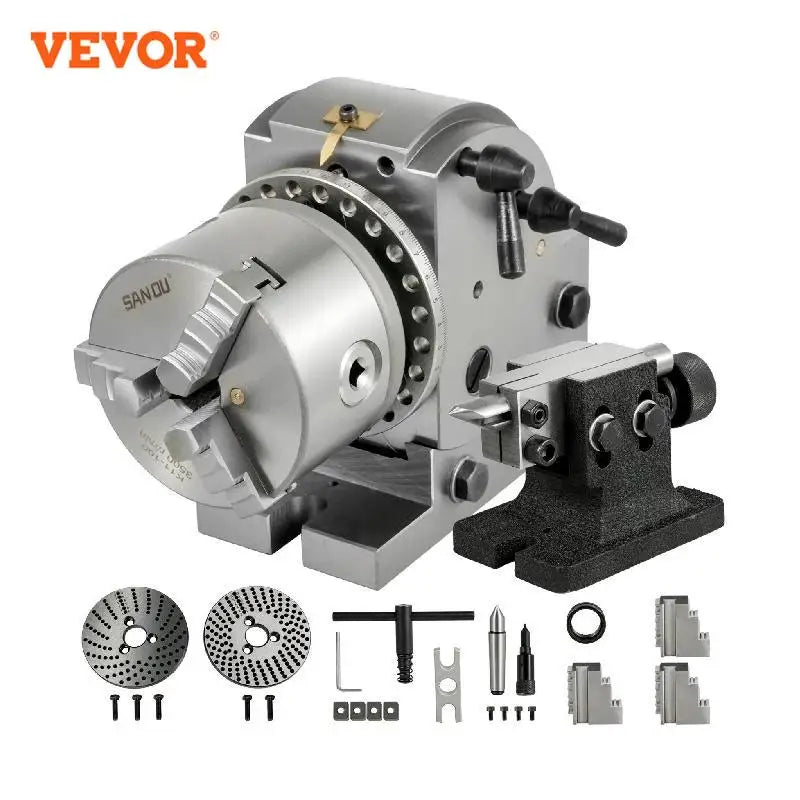

    Dividing Head Precision Semi Universal BS0 BS1 4" 5" 6" Indexing Head W/ Tailstock & Chuck for Drilling Milling Grinding

    $294.45
    Ask about this product

      Product Description
      4''/100MM Dividing Head for Milling Machine
      Semi-Universal Dividing Head is a simple Index Center and can be used for direct and indirect dividing. Complete the gear, face, flute processing and no need accessories, the same construction as universal type. With rotary indexer, the 24 quick-dividing holes can complete 2,3,4,6,8,12,24 division indexding.

      • Adjustable Angle

      • Solid Construction

      • Clear & Accurate

      • MT2 Tailstock Adjustable

      • Rich Dividing Head Set


      Tough Equipment & Tools, Pay Less
      VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
      Why Choose VEVOR?

      • Premium Tough Quality

      • Incredibly Low Prices

      • Fast & Secure Delivery

      • 30-Day Free Returns

      • 24/7 Attentive Service

      Key Features
      Adjustable Angle
      You can adjust the different angle(0-90 degrees)as you need with the handle, Vertical & horizontal milling machine with headstock chuck for a lathe. Center Height: 4"/100mm.
      Ruggedly Constructed
      Ruggedly constructed hardened and ground worm gear. Designed for long service time. Reduction Ratio: 1:40.
      High Precision
      Designed with a rotary table and indexing chuck, two dials with precise scales help you to adjust the angle more accurate.
      Quality Tailstock
      MT2 tailstockBall bearing precision, smooth turning. One more dead center for free.
      Multiple Accessories
      3 dividing plates for different sizes with easy indexing of divisions from 2 to 50 and most numbers up to 380. And a set of operation tool provides extra help.
      Wide Application
      Ideal choice for various uses in milling, grinding and drilling work.
      Specifications

      • Chuck Diameter: 4"/100mm

      • Center Height: 4"/100mm

      • Material: HT200

      • Reduction Ratio: 1:40

      • Tailstock: MT2

      Package Content

      • 1 x Dividing Head

      • 1 x Tailstock

      • Some Related Accessories

      Specifications

      • Swing: 6-1/2" (16.5 cm)

      • Center Height: 3-15/16" (10 cm)

      • Headstock Taper: MT2

      • Net Weight: 50.7 lbs (23 kg)

      • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)

      • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

      Package Content

      • 1 x Dividing Head

      • 3 x Dividing Plates

      • 1 x Tailstock

      • 1 x 125 mm 3-Jaw Chuck

      Specifications

      • Chuck Diameter: 6" / 16 cm

      • Spindle Speed: 2500 RPM

      • Swing: 6-1/2" / 16.8 cm

      • Center Height: 5" / 12.8 cm

      • Reduction Ratio: 1:40

      • Tailstock: MT3

      • Net Weight: 77 lbs / 35 kg

      • Headstock Dimensions: 4.4" x 7.9" x 11.8" / 11.3 x 30.2 x 21.9 cm

      • Tailstock Dimensions: 4.5" x 6.6" x 5.2" / 11.5 x 17 x 13.4 cm

      Package Content

      • 1 x 6" Dividing Head

      • 2 x Dividing Plates

      • 3 x 6" Chuck Jaws

      • 1 x Dead Center

      • 1 x Tailstock

      • 1 x Set of Related Accessories

      Features & Details

      • 【ADJUSTABLE DIVIDING HEAD】- The semi-universal dividing head features 4" 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4"/100mm. Free 3 more jaws for 4" chuck.

      • 【SOLID CONSTRUCTION】- Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.

      • 【CLEAR & ACCURATE】- Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.

      • 【MT2 TAILSTOCK ADJUSTABLE】- Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.

      • 【RICH DIVIDING HEAD SET】- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
