Adjustable Saddle & Swivel Casters & Auxiliary Ring

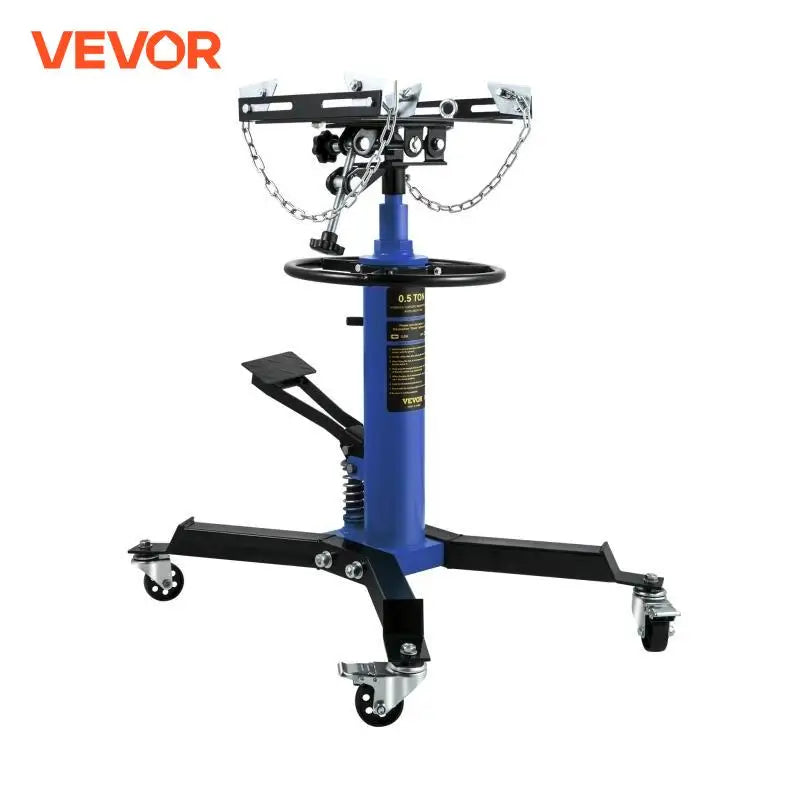

VEVOR’s 1100LBS Hydraulic Transmission Jack is ideal for any automotive or light truck transmission installation or removal task. An adjustable tray and the pedal-type design of the hydraulic transmission jack enable you to position and align the transmission more precisely. 4 pcs swivel casters and an auxiliary ring provide smooth movement on any surface. Whatever has got you down, get a jack that brings you up. Raise the bar higher and get yourself a jack that goes above and beyond.
1100 LBS Loading Capacity
33-1/2" -67" Lifting Range
Precise Positioning
Easy to Move
High-Grade Steel
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
1100 lbs Loading Capacity
With 1/2 ton/1100 lbs of load-bearing capacity, the telescoping transmission jack provides a wide range of versatility designed to help increase shop productivity.
Extending Length: 33-1/2" -67"
Great lift range due to the telescopic two-stage hydraulic ram, the transmission jack can extend from 33-1/2" to 67". The jack is raised by pedaling, so there is no need to bend over.
Fully Adjustable Saddle
The oversized saddle provides a wide tilt range and features adjustment knobs for controlling tilt to fit a variety of transmissions.
Easy to Move
An auxiliary ring is fixed at the middle of the hydraulic transmission jack for easy transmission control. And 4 pcs swivel casters add effortless maneuverability.
Strong Steel Construction
Our jack is made of strong heavy-duty steel construction for maximum durability, and a paint-coated surface for rust resistance.
Wide Application
This transmission jack can be used in many places, such as car repair stations and car gearboxes. Deal with the objects weighing no more than 1100 lbs effortlessly.
Specifications
Model: 1100ORANGEJACK
Load Capacity: 1100 lbs / 1/2 ton
Lift Range: 33-1/2" -67"/ 85-170 cm
Material: Steel
Safety Chain Length: 23-3/5"/ 60 cm
Saddle Rotation: 360°
Saddle Tilt: 30°
Tray Size:13.8" x 9.8"/35 x 25 cm
Product Dimension: 33.5" x 25.6" x 33.5"/85 x 65 x 85 cm
Net Weight: 95.9 lb/43.5 kg
Color: Orange
Package Content
1 x Telescopic Transmission Jack
Specifications
Model: 1100BLUEJACK
Load Capacity: 1100 lbs / 0.5 ton
Lift Range: 33-1/2" -67"/ 85-170 cm
Material: Steel
Safety Chain Length: 23-3/5"/ 60 cm
Saddle Rotation: 360°
Saddle Tilt: 30°
Tray Size:13.8" x 9.8"/35 x 25 cm
Product Dimension: 33.5" x 25.6" x 33.5"/85 x 65 x 85 cm
Net Weight: 95.9 lb/43.5 kg
Color: Blue
Package Content
1 x Telescopic Transmission Jack
Specifications
Model: 1100REDJACK
Load Capacity: 1110 lbs / 1/2 ton
Lift Range: 33-1/2" -67"/ 85-170 cm
Material: Steel
Safety Chain Length: 23-3/5"/ 60 cm
Saddle Rotation: 360°
Saddle Tilt: 30°
Tray Size:13.8" x 9.8"/35 x 25 cm
Product Dimension: 33.5" x 25.6" x 33.5"/85 x 65 x 85 cm
Net Weight: 95.9 lb/43.5 kg
Color: Red
Package Content
1 x Telescopic Transmission Jack
Specifications
Model: 1322REDJACK
Load Capacity: 1322 lbs-1660 lbs
Lift Range: 33-1/2" -67"/ 85-170 cm
Material: Steel
Safety Chain Length: 23-3/5"/ 60 cm
Saddle Rotation: 360°
Saddle Tilt: 30°
Tray Size:13.8" x 9.8"/35 x 25 cm
Product Dimension: 33.5" x 25.6" x 33.5"/85 x 65 x 85 cm
Net Weight: 95.9 lb/43.5 kg
Color: Red
Package Content
1 x Telescopic Transmission Jack
Features & Details
1100 LBS Loading Capacity: Our 1100 lbs / 1/2-ton hydraulic telescoping transmission jack helps you easily guide a transmission securely. Great for any automotive or light truck transmission installation or removal. See where the problem is and solve it with a quality transmission jack.
33-1/2" -67" Lifting Range: Enhanced hydraulic pressure for an extended lifting range, the pedestal transmission jack with a 33-1/2 inch to 67 inch lift range, our jack can lift your car to any suitable height. Comes with a foot-operated pedal, so it's easier to rise, and free up your hands.
Precise Positioning: Adjustable saddle provides a wide tilt range that helps you get the load in the perfect position. The tray can be tilted 30-degree. Adjust the angle and place you need by screwing the adjustment bolts. Set yourself up for success, control where you want to be and how you want to get the job done.
Easy to Move: Features 4 pcs 360° swivel casters, so there is no need to worry about how to transport it to another car. An auxiliary ring is fixed at the middle of the jack, making it convenient for your hands to push or pull when you move it.
Premium High-Grade Steel: Durable frame is constructed of high-grade steel for quality and durability. A wide base provides exceptional stability, and two heavy-duty safety anchor chains are specially designed to secure loads firmly. Quality material your feel, for quality results you can see.
