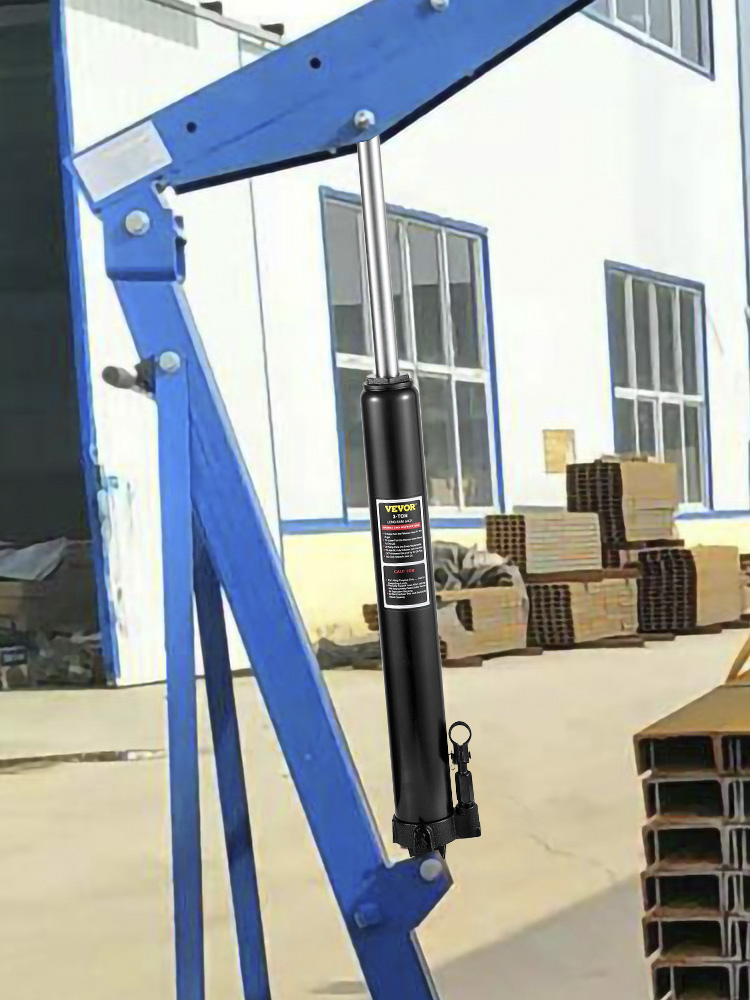

This VEVOR 3-Ton capacity long ram hydraulic jack helps you convert your existing hydraulic hoist to a convenient and fast hoist. It is a quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications. Mounts directly onto most shop cranes. Vertical use only.
Handles up to 3-Ton
26" -45.7" Lifting Range
Reliable & Durable Jack
Labor-saving Long Ram
Sturdy Steel Construction
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Key Features
3-Ton Load Capacity
With 3 tons of load-bearing capacity, the long ram jack easily supports your shop cranes, engine hoist, and more. Save your effort and time.
26"-45.7" Lifting Range
The long ram jack features a lifting range from 26" to 45.7" with an ample 19.7 in. stroke. Lift your hoist with ease!
Hydraulic Steel Cylinder
Integrated built-in oil-bypass and overload valve that protects the hydraulic system from extending beyond limits.

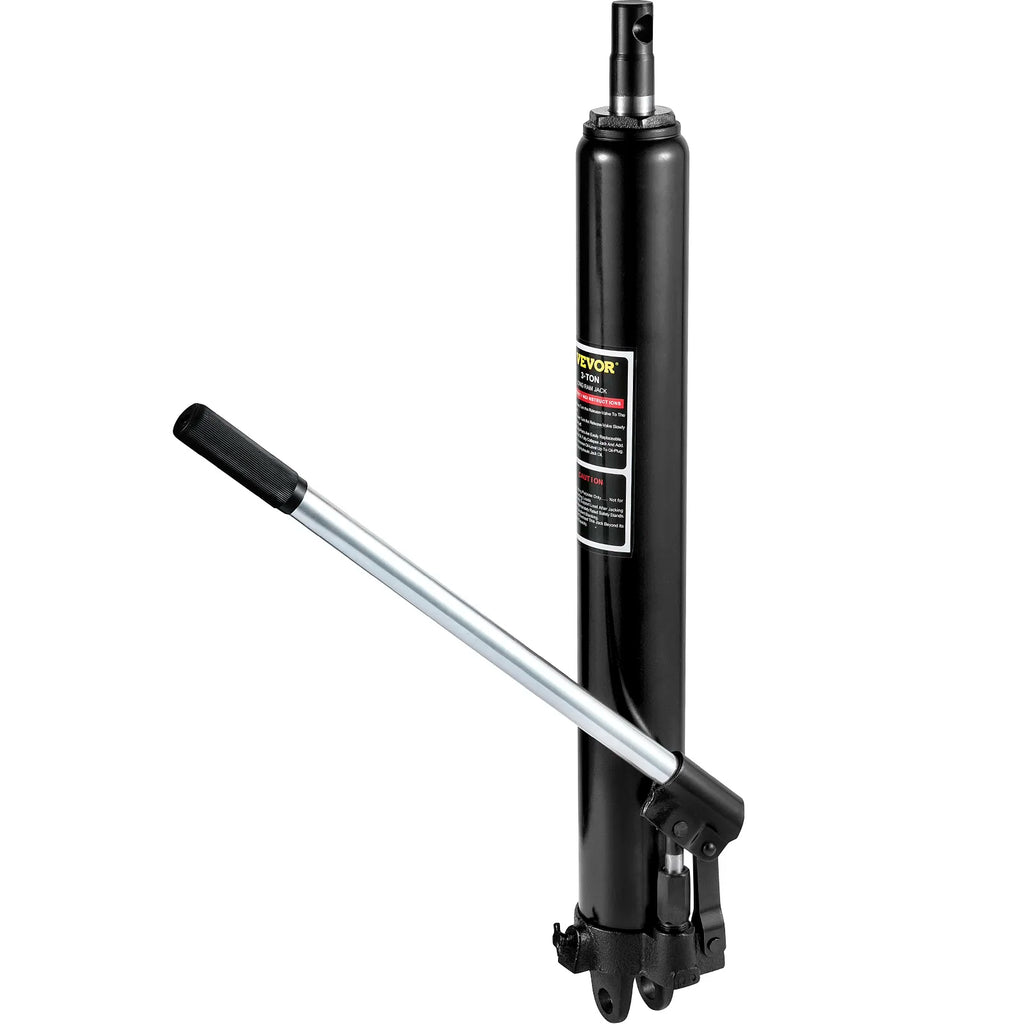

Single Piston Pump & Clevis Base
The pressure pump is designed to lift with minimal muscle and effort. And clevis style base allows it to mount directly onto most shop cranes.
High-grade Steel Structure
The long ram jack is constructed of heavy-duty steel for added strength. It is treated with powder-coated, lead-free paint, providing a durable coating.
Residential and Commercial Use
Our hydraulic long ram jack is intended for residential and commercial use, fitting garage/shop cranes, engine hoists, and more.
Specifications
Model: VV-CGQJD-LDJ-3T
Lifting Capacity: 3 tons/6600 lbs
Min. Lift Height: 26 in/66 cm
Max. Lift Height: 45.7 in/116 cm
Stoke: 19.7 in/50 cm
Piston Rod Dia.: 1.1 in/2.8 cm
Pinhole Dia.: 0.7 in/1.7 cm
Product Diameter: 2.8 in/ 7 cm
Weight: 18.3 lb/8.3 kg
Package Content
1 x Hydraulic Long Ram Jack
1 x Handle
Specifications
Model: VV-CGQJD-LDJ-3T
Lifting Capacity: 3 tons/6600 lbs
Min. Lift Height: 26 in/66 cm
Max. Lift Height: 45.7 in/116 cm
Stoke: 19.7 in/50 cm
Piston Rod Dia.: 2.8 cm/1.1 in
Pinhole Dia.: 1.7 cm/0.7 in
Weight: 8.3 kg/18.3 lb
Diameter: 7 cm/2.8 in
Package Content
1 x Hydraulic Long Ram Jack
1 x Handle
Specifications
Model: VV-CGQJD-LDJ-8T
Lifting Capacity: 8 Tons/17363 lbs
Min. Lift Height: 26 in/66 cm
Max. Lift Height: 45.7 in/116 cm
Stoke: 19.7 in/50 cm
Drive: Hydraulic
Piston Rod Dia: 1.2 in/3 cm
Pinhole Dia.: 0.7 in/1.7 cm
Diameter: 3.1 in/8 cm
Weight: 20.5 lb/9.3 kg
Package Content
1 x Hydraulic Long Ram Jack
1 x Handle
Specifications
Model: VV-CGQJD-HODJ-12T
Lifting Capacity: 12 tons/26455 lbs
Min. Lift Height: 26 in/66 cm
Max. Lift Height: 45.7 in/116 cm
Stoke: 19.7 in/50 cm
Piston Rod Diameter: 1.3 in/ 3.4 cm
Pinhole Diameter: 0.7 in/ 1.7 cm
Product Diameter: 3.1 in/8 cm
Weight: 25.4 lb/11.5 kg
Package Content
1 x Hydraulic Long Ram Jack
1 x Handle
Features & Details
Handles up to 3-Ton: This 3-Ton capacity long ram hydraulic jack helps you convert your existing hoist to a convenient and fast one. A quick way to raise loads without the backache. A must-have for hydraulic cranes, engine hoists, and a wide variety of applications.
26" -45.7" Lifting Range: Minimum height: 26 in/66 cm. Maximum height: 45.7 in/116 cm. The long ram hydraulic round bottom jack provides an ample 19.7 in/50 cm stroke for the optimal lift of objects up to 3 ton/6600 lb. in weight. And the slow release function for reliability and security.
Reliable & Durable Jack: Large diameter hydraulic steel cylinder unit results in lower oil pressure needed to move the load, which helps to reduce wear and extend service life. The piston-ram is treated and polished to resist skiving and utilizes a Y-Style polyurethane sealing ring with a backup ring, preventing the load from falling slowly or bypassing oil drift.
Labor-saving Long Ram: Long ram jack features a convenient handle with a rubberized comfort grip. Clevis style base allows the jack mounts directly onto most shop cranes. And the glide-action pressure pump is designed to lift with minimal muscle and effort.
Sturdy Steel Construction: Durable frame is constructed of high-grade steel and built to exacting standards for quality and durability. A lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish. Paint is oil, grease, and dirt-resistance for easy cleanup.
