Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft
Sold Out

    Electric Compressor Motor 1.5 HP 56C Frame Single Phase Electric Motor 1725 RPM Rated Speed 115V 230V 5/8 Inch Keyed Shaft

    $265.45

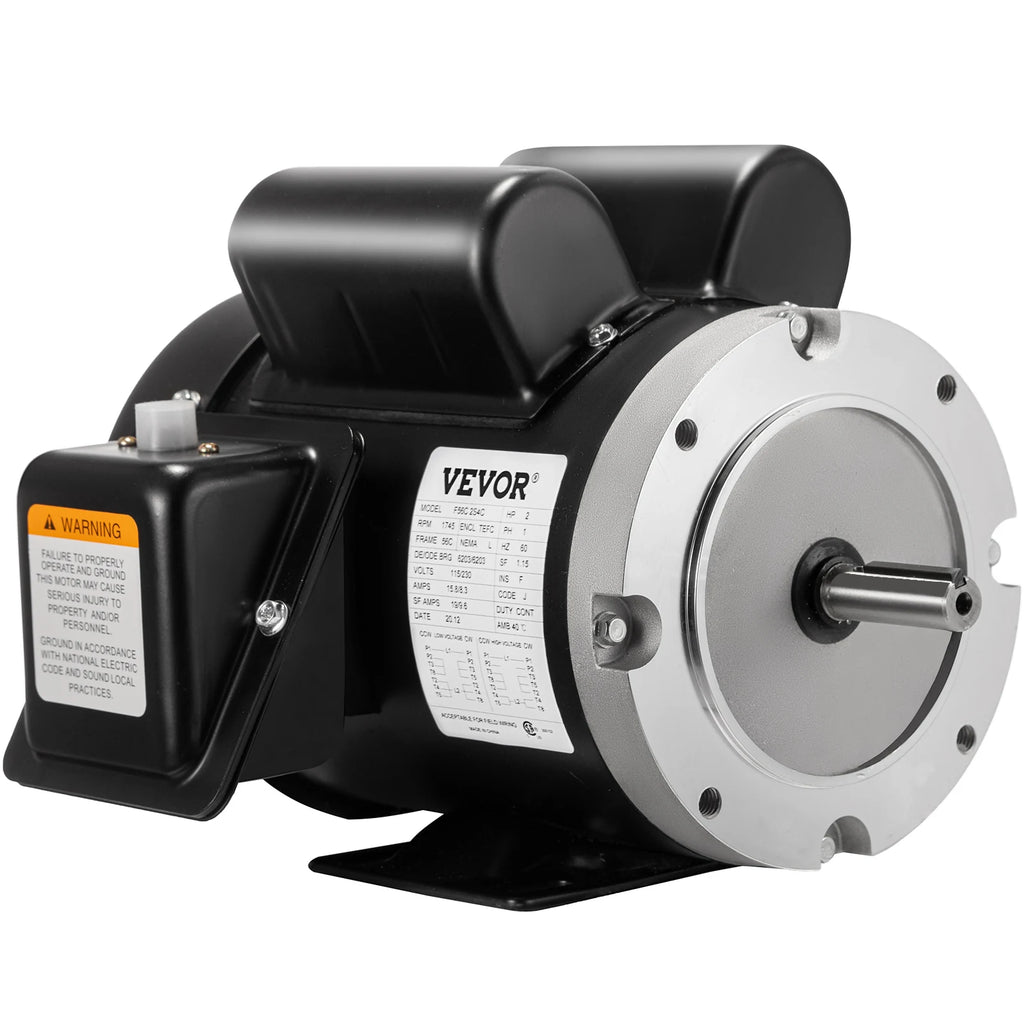

      2 HP 1745 RPM Electric Motor
      Single Phase & TEFC Enclosure & Fast Heat Dissipation
      VEVOR's single phase electric motor is rated at 2 HP 1745 RPM and can be connected to 115/230V incoming power devices. This general purpose electric motor conforms to the standard for high hardness and performance, which is well suited for water pumps, agricultural machinery, and general equipment. Built tough to work tough, Our motor will have your equipment roaring for the next job!
      • Single Phase Electric Motor
      • Excellent Working Efficiency
      • Sturdy Steel Construction
      • High-Speed Cooling Fan
      VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
      Why Choose VEVOR?
      • Premium Tough Quality

      • Incredibly Low Prices

      • Fast & Secure Delivery

      • 30-Day Free Returns

      • 24/7 Attentive Service

      High-Performance Motor
      2hp air compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads, and maintaining a high working efficiency.
      1745 RPM High Speed
      The motor for air compressor runs at 1745 RPM, Synchronous Speed: 1800 RPM. Our high-quality steel shaft characterized by its low rotating noise and stable operation.
      Fully Enclosed Fan
      A built-in silent cooling fan will quickly dissipate heat while running for a long time. With multiple heat dissipation holes, effectively guarding the motor's body.
      Rugged & Durable Construction
      The 1745 rpm electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life.
      Rigid Mounting Bracket
      The general purpose electric motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.
      Wide Application
      This motor 56c frame is suitable for air compressors, medical equipment, metal cutting machines, pumps, fans, transport machinery, food machinery, etc.
      Specifications
      • Model: 140256C
      • Type: SHDC
      • Phase: Single Phase, 4 Pole
      • Horsepower: 2 HP
      • Voltage: 115/230V
      • Full Load Amps: 20/10 A
      • Frequency: 60 Hz
      • Rated Speed: 1745 RPM
      • Synchronous Speed: 1800 RPM
      • Frame: 56C Frame
      • Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
      • Shaft Length: 1.875 in / 4.8 cm
      • Rotation: CW - CCW(Reversible)
      • ENC: TEFC
      • Service Factor: 1.15
      • Insulation Class: F
      • Reversible/Non-Reversible: Reversible
      • Max. Ambient Temperature: 104℉/40℃
      Package Content
      • 1 x Electric Motor
